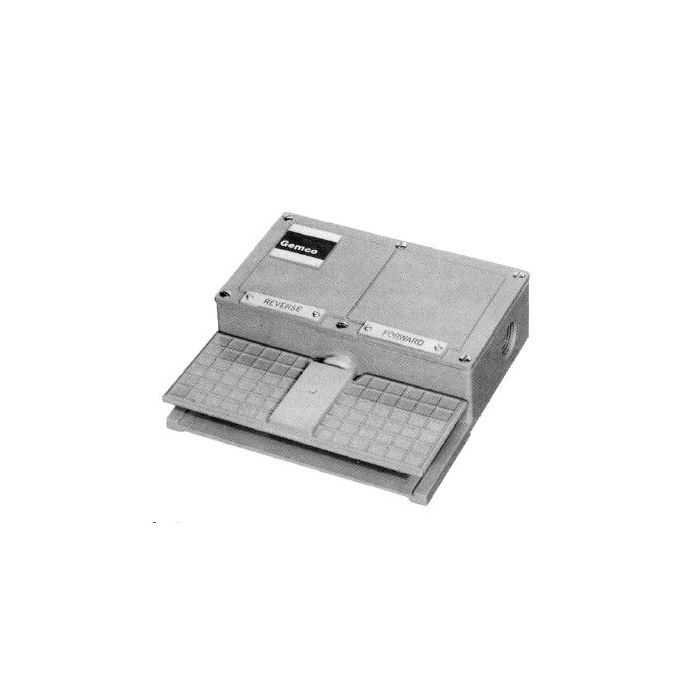

Ametek Gemco 1025C Side Treadle Operated Foot Switch (Special Order)

$414.00

The 1025 C Heavy Duty side treadle foot switches mount two switches or two air valves in the bottom of a NEMA 4 enclosure, available with or without a shield. Frequently used to control industrial processes.

The 1025 C Heavy Duty side treadle foot switches mount two SPDT or DPDT switches or two air valves in the bottom of of the case.  Available with or without a shield. The treadle works in a manner comparable to a rocker lever pivoted in the center. It operates one contact block in one direction and the other contact block in the opposite direction.

NEMA Type 4 die cast enclosures incorporate a synthetic gasket which prevents exposure to oil, water and dust, while the die cast aluminum treadle has a friction type seal assuring watertight and oiltight performance.

Features:

  • Foot switches are factory adjusted for center "off"  with spring return from each direction
  • Field conversion to 2 or 3 maintained positions
  • Treadle travel is field adjustable
  • Two 3/4 inch pipe tapped conduit entrances and an interior wall permits an additional entrance
  • 6 nameplates, "start", "stop", "forward", "reverse", and two blanks are included

Usually ships 10 - 15 working days after receipt of order

If you have any questions about using this product in your application, please do not hesitate to call or email us.

Switch/Valve Type
Shield Option

Gemco

Catalog #

2SPDT without 1025-C-2SP-X
2SPDT with 1025-C-2SP-S
2DP without 1025-C-2DP-X
2DP with 1025-C-2DP-S
2A4 without 1025-C-2A4-X
2A4 with 1025-C-2A4-S

Part Number Cross Reference
Switch Type

Cutler-Hammer

Part Number

Gemco

Part Number

C 10251-H26A 1025-C-2SP-X







For more information, please check the Gemco 1025  brochure or Gemco 1025C data sheet

More Information
SKU GEMCO-1025C-SO
Shipping Weight (LBS) 10.000000
Manufacturer Gemco
Manufacturer Part Number 1025-C
Country of Manufacture United States
