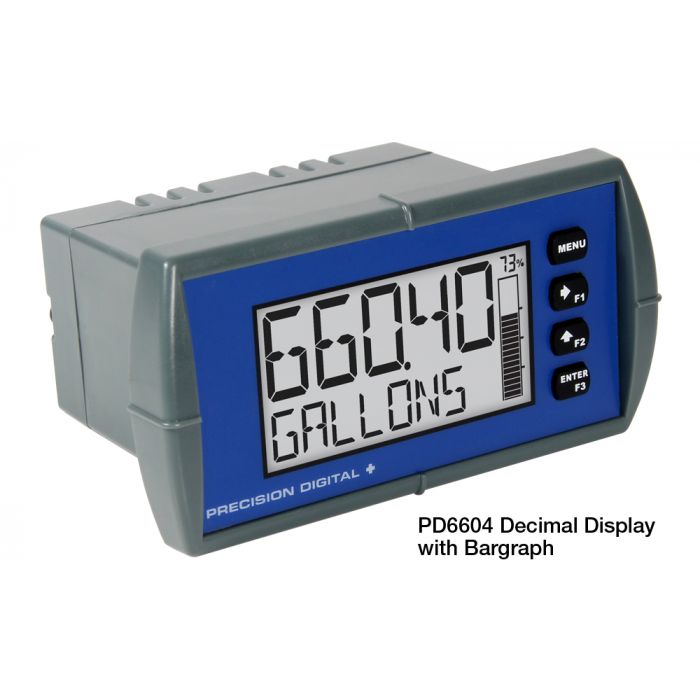

Precision Digital PD6604 Process Meter with Bargraph Display

As low as $276.00

The Precision Digital PD6604 is a loop-powered, 1/8 DIN process meter with four programmable customizable front panel buttons with a dual-line digital display with an added bargraph.

The Precision Digital PD6604 is a loop-powered, 1/8 DIN process meter with four programmable customizable front panel buttons with a dual-line digital display with an added bargraph. The PD6604 comes with two open collector outputs and is available with two solid state relays and a 4-20 mA analog output. This loop-powered meter has no need for additional costly power lines as the meter gets all of the power from the 4-20 mA loop.

Features

  • Loop-Powered Backlight with Red Backlight for Alarm Conditions
  • Loop-Powered Process Meter
  • 1.5 Volt Drop (4.5 Volt Drop w/ Backlight)
  • IP65 Front
  • -40 to 167°F (-40 to 75°C) Operating Temperature Range
  • Alphanumeric tag names
  • Dual Line Display with Bargraph
  • 1/8 DIN Shallow Depth Case
  • Available Loop-Powered Solid State Relays
  • Open Collector Output Standard
  • Timer functions for open collectors and relays
  • Relay pump alternation based on level and time
  • Relay runtime and cycle count
  • Multi-Point Linearization, Square Root, Programmable Exponent, and Round Horizontal Tank Input Conditioning Functions
  • Automatic units conversion for volume, height, temperature, pressure, weight, and rate

Usually ships 5-10 working days after receipt of order

 If you have any questions about using this product in your application, please do not hesitate to call or email us.

For more information, please check the PD6604-datasheet.pdf  and PD6602-6604-manual.pdf

More Information
SKU PREDIG-PD6604
Shipping Weight (LBS) 4.000000
Country of Manufacture United States
Manufacturer Precision Digital
Manufacturer Part Number PD6604
Meter Inputs Current (4-20 mA)
Display Type Dual Line, 0.7" & 0.4" High, 5 & 8 Digits, Decimal, Bargraph, LCD
