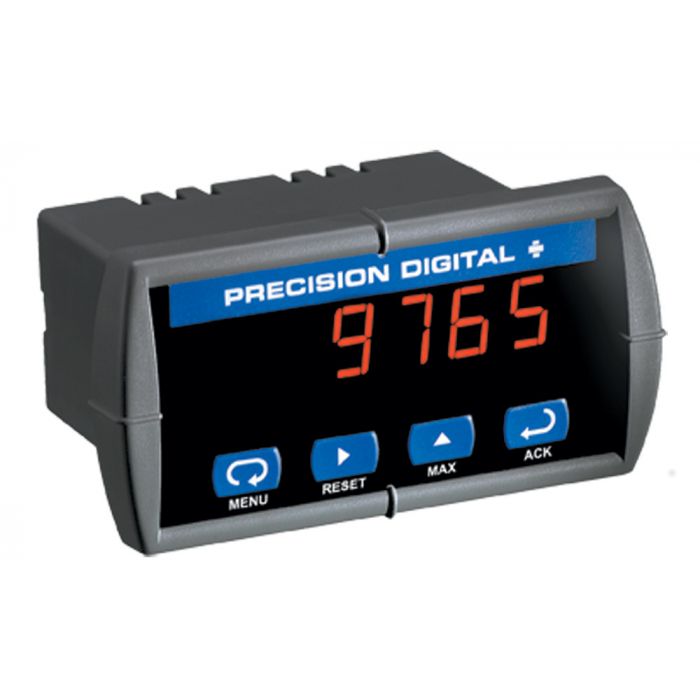

Precision Digital PD765 Process Meter
Model PD765 is a1/8 DIN digital panel meter for many process and temperature applications which displays a signal on a sunlight readable display in either 0.56" (14.2 mm) or an astounding 1.2" (30.5 mm) heights.
Model PD765 is a 1/8 DIN digital panel meter for many process and temperature applications which displays a signal on a sunlight readable display in either 0.56" (14.2 mm) or an astounding 1.2" (30.5 mm) heights. PD765 meters have a NEMA 4X front and AC or DC power options. They can be equipped with two internal relays, a 4-20 mA output and RTU serial communications, and a a 24VDC power supply.
Features
- 4-20 mA, ± 10 V, TC & RTD Inputs
- NEMA 4X, IP65 Front
- Shallow Depth Case 3.6" Behind Panel
- Operating temperature range of between -40°C and 65°C
- Universal Power Supply 85-265 VAC
- Two Relays Option with Alternation &
Time Delays - 4-20 mA Analog Output Option
- 24 VDC @ 200 mA Transmitter Power Option
- RS-232, RS-485 Serial Communication Options
- Sunlight Readable Display
If you have any questions about using this product in your application, please do not hesitate to call or email us.
For more information, please check the PD765-datasheet.pdf and PD765-manual.pdf
For non-stocked configurations, visit the Special Order page.
| SKU | PREDIG-PD765 |
|---|---|
| Shipping Weight (LBS) | 4.000000 |
| Country of Manufacture | United States |
| Manufacturer | Precision Digital |
| Manufacturer Part Number | PD765 |
