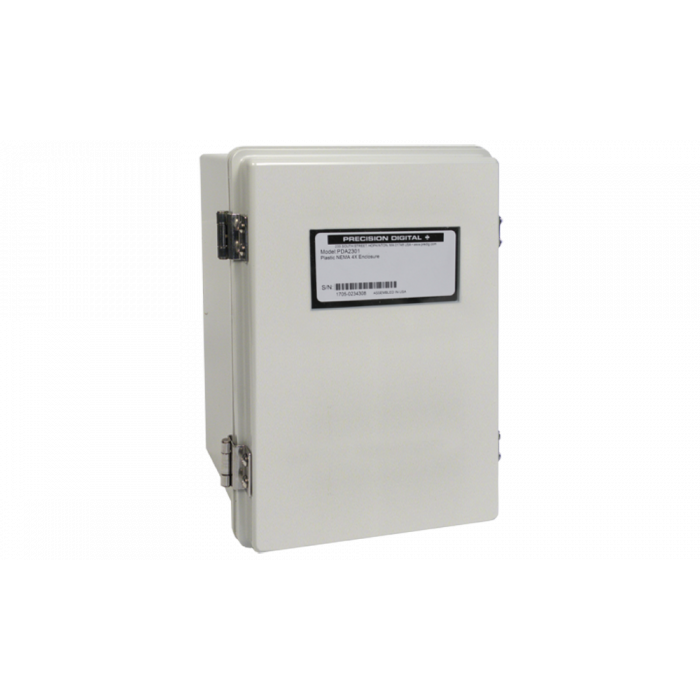

Precision Digital PDA2301 NEMA 4X Enclosure for One Panel Meter

PDA2300 NEMA 4X, C-UL listed enclosures feature a hinged door in which meters are mounted so all programming and operational functions are available without opening the enclosure. The PDA2300 can house between one and ten meters in either horizontal or vertical orientation. This particular enclosure, the PDA2301, has a horizonal cutout for one meter. A dual orientation enclosure for two 1/8 DIN devices is also available. All PDA2300 enclosures are outfitted with stainless-steel hinges and clasps. Enclosures and meters are ordered and packaged separately.

Features

• NEMA 4X, UL, C-UL
• Thermoset Polyester Material
• Houses One Precision Digital Panel Meter
• One Horizontal Cutout
• Meters sold separately

Dimensions

• Overall Outside Dimensions: 11.80 x 7.90 x 7.01
• Inside Dimensions: 11.06 x 7.09 x 6.91
• Mounting Dimensions: 9.96 x 7.72
