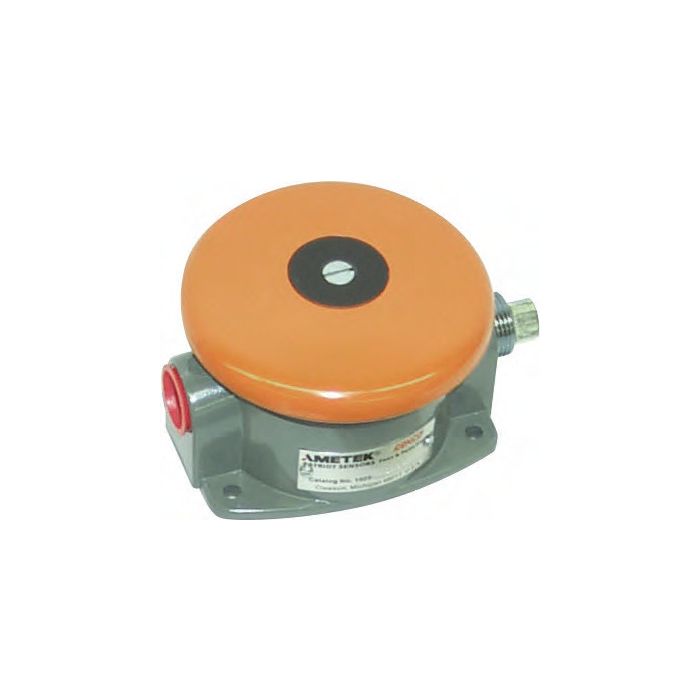

Ametek Gemco 1025D Foot and Palm operated Switch

$243.00

The 1025 type D mushroom button foot or palm operated switch which is well suited for applications where a large, easily visible switch is required. A robust NEMA1 enclosure provides excellent environmental protection. Frequently used to control industrial processes.

The 1025 type D mushroom button foot or palm operated switch which is well suited for applications where a large, easily visible switch is required. It features a bright orange button 5 inches in diameter. It is ideal for an emergency stop station or an emergency safety measure which clears the operator's hands from the machine.

The NEMA 1  enclosure has a die cast case and button, with two 3/4 inch pipe tapped entrances.

Features:

  • Large Bright orange button
  • One or Two SPDT or DPDT switches
  • A neoprene bellows type seal adds resistance to contamination
  • Two 3/4 inch pipe tapped entrances, one with a plug

Usually ships 10 - 15 working days after receipt of order

If you have any questions about using this product in your application, please do not hesitate to call or email us.

Switch/Valve Type

Gemco

Catalog #

1SPDT 1025-D-1SP
2SPDT 1025-D-2SP
1DPDT 1025-D-1DP
2DPDT 1025-D-2DP

Part Number Cross Reference

Switch Type

Cutler-Hammer

Part Number

Gemco

Part Number

D 10251-H28A 1025-D-1SP
D 10251-H31A 1025-D-2SP







For more information, please check the Gemco 1025  brochure or Gemco 1025D data sheet

More Information
SKU Gemco-1025D
Manufacturer Ametek
Manufacturer Part Number 1025-D
Alternate Catalog / Part Numbers N/A
Switch Contact Configuration N/A
Switch Cover Options N/A
Latch Option N/A
