Ametek USG NL310WJ Air Volume Control - Deep Well Operation

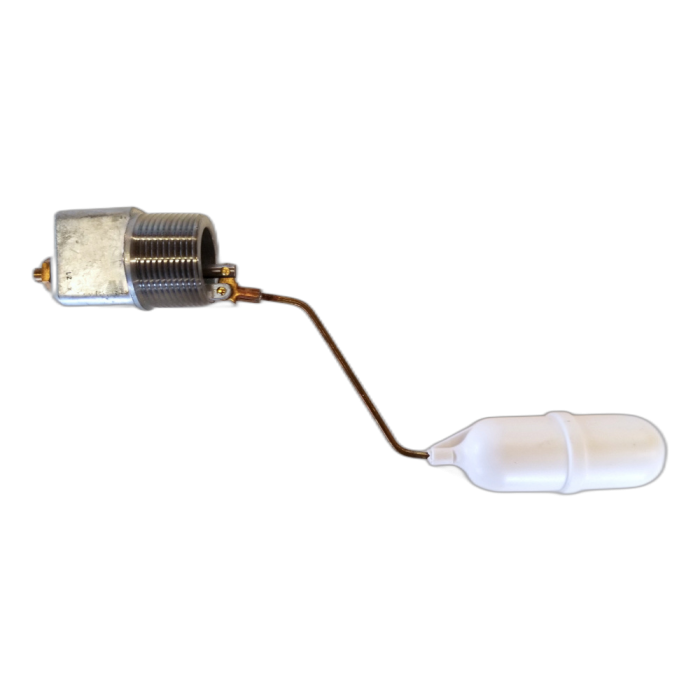

Ametek Model NL310WJ air volume control for deep well operation
Ametek Model NL310WJ low lead air volume control for deep well operation. Spec# 148540ANL
Ametek U.S. Gauge air volume controls are designed to maintain the proper ratio of air to water in hydropneumatic tank systems.
The NL310WJ is designed for deep well systems where some amount of air is pumped into the tank by the well pump along with the water. When there is an excess of air and the water level is low, the float opens the main valve of the control, permitting air to be vented to a chamber within the control. This chamber contains an adjustable pressure relief valve which exhausts the excess air to the atmosphere, providing the pressure in the tank is higher than the relief valve setting. As the float rises with the increase in water level the main valve closes, trapping the remaining volume of air in the tank. The optimum relationship between the volume of air and water in the tank is thus maintained.
U.S. Gauge low lead air volume controls adhere to the “Reduction of Lead in Drinking Water Act”.
HOUSING: Die cast zinc, with 1-1/4 – 11-1/2 ANPT male connection for tank installation, and 1/4-18 ANPT female connection to accept a U.S. Gauge Model P-500LL pressure gauge, 1/4-18 ANPT, LM connection
MAIN VALVE: Brass stem with a neoprene seat, float actuated
RELIEF VALVE: Brass, spring loaded pressure actuated Manually adjustable between 15 and 40 psi. Stock units preset at 25 psi
FLOAT: Plastic bulb, mounted on a solid, low lead brass rod
|Shipping Weight (LBS)||3.000000|
|Manufacturer Part Number||148540ANL|
|Country of Manufacture||China|
