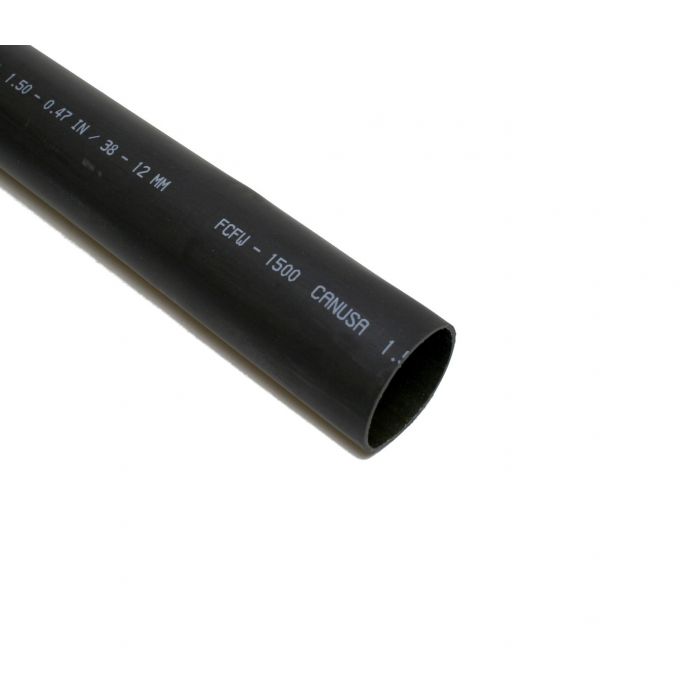

DSG-Canusa FCFW

As low as $16.75
In stock
SKU
CANUSA-FCFW

Flame retardant heavy wall heat shrink tubing with adhesive lining. Recommended for covering 600/1000V single conductor size #14-#10 AWG.

Features:

  • Flame Retardant
  • 3:1 shrink ratio
  • Adhesive Lined

DSG-Canusa heavy wall heat shrink tubing is ideal for applications requiring high abrasion and impact resistance. It withstands severe mechanical requirements of U.R.D., submersible, and direct burial installations. Typical applications are insulation of primary low voltage cables, strain relief, and mechanical protection. When heated to the shrink temperature of 120°C, this tubing will shrink to 1/3 of its original diameter. The thermoplastic adhesive liner provides complete environmental protection and insulation. Recommended for covering 600/1000V single conductor size #14-#10 AWG.

  • Flame Retardant
  • High impact and abrasion resistance - capable of withstanding severe mechanical abuse of U.R.D., submersible, and direct burial installations.
  • Will not split or rupture during installation, even when overheated.
  • 3:1 shrink ratio
  • Adhesive Lined - thermoplastic liner provides complete environmental protection and insulation.
  • Rated for 1kV, 90°C continuous use
  • Continuous operating temperature: -55°C to 110°C
  • Shrink temperature: 120°C
  • Made of Polyolefin, for high impact, abrasion, corrosion, and chemical resistance

Standards:

  • UL 486D
  • CSA C22.2 No. 198.2
  • ANSI C119-1
  • Western Underground Guides No. 2.4 and 2.5
  • IEEE 383 Vertical Flame Test
  • ANSI C37.20.2
  • ICEA S-19-8 and NEMA insulation thickness requirements
  • SAE-AMS-DETL-23053/15 Class 1
  • DNV Type approval
Canusa Reference Numbers
Canusa part No.Catalog NumberSize (Expanded ID)ColorPackaging
1510400BK0048 FCFW-0400BK48IN 0.40" Black 48" Lengths
1510500BK0048 FCFW-0500BK48IN 1/2" Black 48" Lengths
1510750BK0048 FCFW-0500BK48IN 3/4" Black 48" Lengths
1511100BK0048 FCFW-1100BK48IN 1.1" Black 48" Lengths
1511500BK0048 FCFW-1500BK48IN 1 1/2" Black 48" Lengths
1512000BK0048 FCFW-2000BK48IN 2" Black 48" Lengths
More Information
SKU CANUSA-FCFW
Color Black
Manufacturer DSG-Canusa
Manufacturer Part Number FCFW
Packaging 48" Lengths
Adhesive Lining Adhesive Lined
Shrink Ratio 3:1
Material Polyolefin
Size (Expanded ID) No
