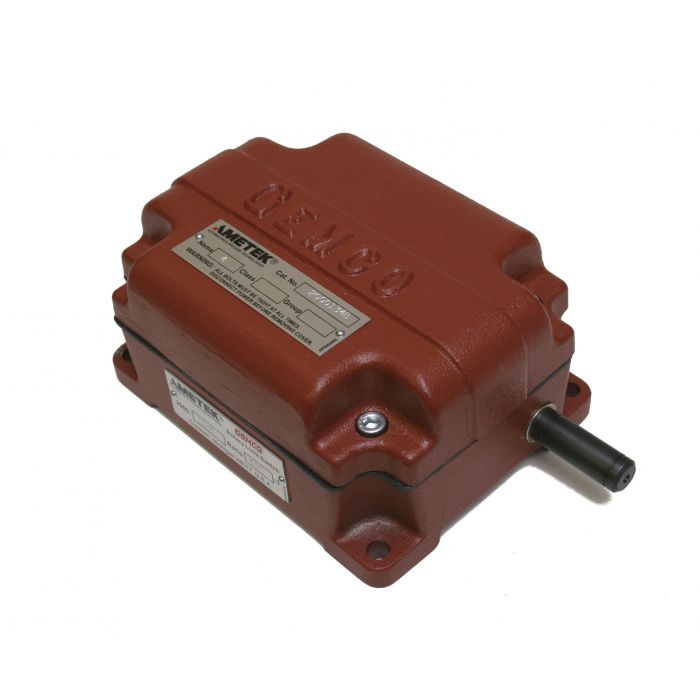

Ametek Gemco Series 2000 Rotary Limit Switch, Worm Gear, SPDT (Special Order)

As low as $385.00

Worm gear type rotary limit switch with two cams and SPDT switches. Available with NEMA 1&12,4 or 7 enclosure. Gear ratios from 5:1 to 5333:1. Used on cranes, hoists and other mechanical devices to control position and limit device travel.

Gemco 2000 Series Rotary Limit Switches control the limits of a rotary motion or gear driven linear motion. The limit switch is often used on cranes and hoists and other mechanical devices to control position and limit device travel, including accidental movement.

Available in NEMA Type 1&12,4, or 7  molded enclosures. These incorporate a synthetic gasket which prevents exposure to oil and coolants. Switches may be mounted without internal interference.

Gemco Rotary Limit Switches are highly dependable.
The 1/2” input shaft drives a bronze gear which rotates the cam block. The cam block houses independently adjustable cams that actuate the precision type snap action switches. Each switch can be provided with one to four single pole, double throw switches for versatility of control circuits.  No minimum speed is specified because snap action contacts are used. Maximum rated speed of the worm shaft is 1000 RPM and can be rotated clockwise or counterclockwise.

Featuring:

  • All Metal Gearing
  • S.P.D.T. Industrial Duty Switches
  • NEMA 1 & 12, 4, and 7 Enclosures
  • Gear Ratios from 5:1 to 5333:1
  • Positive, Independent Cam Settings
  • Large Cover Openings for Ease of Wiring
  • U.L. & CSA recognized switches



Usually ships 7-9 weeks after receipt of order

Gemco rotary limit switches are built to order, and are not returnable. If you have any questions about using this product in your application, please do not hesitate to call or email us.



Two Cam Input Shaft Rev. Cam Block Rev.

NEMA 1 & 12

Catalog #

NEMA 4

Catalog #

NEMA 7

Catalog #

Input Shaft Turns

Max. Setting

Input Shaft Turns

To Reset

5 1 2000-1b 2000-9b 2000-17b 4-1/2 1/16
10 1 2000-38b 2000-39b 2000-40b 9-1/4 1/8
20 1 2000-2b 2000-10b 2000-18b 18 1/8
30 1 2000-3B 2000-11B 2000-19B 28 1/4
40 1 2000-4B 2000-12B 2000-20B 37 1/4
50 1 2000-5B 2000-13B 2000-21B 46 1/4
60 1 2000-6B 2000-14B 2000-22B 58 1-1/2
80 1 2000-7B 2000-15B 2000-23B 77 3/4
100 1 2000-8B 2000-16b 2000-24B 94 3/4
150 1 2000-129B 2000-132B 2000-135B 135 4
250 1 2000-28b 2000-31B 2000-34B 230 6
300 1 2000-130B 2000-133B 2000-136B 265 6-1/2
500 1 2000-29B 2000-32B 2000-35B 460 15-1/4
600 1 2000-131B 2000-134B 2000-143B 555 16
1000 1 2000-30B 2000-33B 2000-36B 920 29
2000 1 2000-292B 2000-299B 2000-291B Consult Factory Consult Factory
4000 1 2000-279B 2000-127B 2000-128B Consult Factory Consult Factory
5333.3 1 2000-281B 2000-157B 2000-158B Consult Factory Consult Factory
Three Cam Input Shaft Rev. Cam Block Rev.

NEMA 1 & 12

Catalog #

NEMA 4

Catalog #

NEMA 7

Catalog #

Input Shaft Turns

Max. Setting

Input Shaft Turns

To Reset

5 1 2000-174B 2000-188B 2000-263B 4-3/4 1/16
10 1 2000-175B 2000-189B 2000-264B 9-1/2 1/16
20 1 2000-176B 2000-190B 2000-265B 19-1/4 1/8
30 1 2000-177B 2000-191B 2000-266B 28-1/2 1/4
40 1 2000-178B 2000-192B 2000-267B 38 1/2
50 1 2000-179B 2000-193B 2000-268B 47 1/2
60 1 2000-180B 2000-194B 2000-269B 57-1/2 1/2
80 1 2000-181B 2000-195B 2000-270B 76-3/4 1/2
100 1 2000-182B 2000-196B 2000-271B 96-1/4 1-1/2
150 1 2000-170B 2000-171B 2000-186B 135 4
250 1 2000-183B 2000-197B 2000-272B 234 2
300 1 2000-187B 2000-300B 2000-301B 265 6-1/2
500 1 2000-184B 2000-198B 2000-273B 460 7
600 1 2000-1100B 2000-1101B 2000-1102B 555 16
1000 1 2000-185B 2000-199B 2000-274B 920 10
2000 1 2000-1103B 2000-1104B 2000-1105B Consult Factory Consult Factory
4000 1 2000-1106B 2000-1107B 2000-1108B Consult Factory Consult Factory
5333.3 1 2000-1109B 2000-1110B 2000-1111B Consult Factory Consult Factory
Four Cam Input Shaft Rev. Cam Block Rev.

NEMA 1 & 12

Catalog #

NEMA 4

Catalog #

NEMA 7

Catalog #

Input Shaft Turns

Max. Setting

Input Shaft Turns

To Reset

5 1 2000-89B 2000-101B 2000-113B 4-3/4 1/16
10 1 2000-90B 2000-102B 2000-114B 9-1/2 1/16
20 1 2000-91B 2000-103B 2000-115B 19-1/4 1/8
30 1 2000-92B 2000-104B 2000-116B 28-1/2 1/4
40 1 2000-93B 2000-105B 2000-117B 38 1/2
50 1 2000-94B 2000-106B 2000-118B 47 1/2
60 1 2000-95B 2000-107B 2000-119B 57-1/2 1/2
80 1 2000-96B 2000-108B 2000-120B 76-3/4 1/2
100 1 2000-97B 2000-109B 2000-121B 96-1/4 1-1/2
150 1 2000-1112B 2000-1113B 2000-1114B 135 4
250 1 2000-98B 2000-110B 2000-122B 234 2
300 1 2000-1115B 2000-1116B 2000-1117B 265 6-1/2
500 1 2000-99B 2000-111B 2000-123B 460 7
600 1 2000-1118B 2000-1119B 2000-1120B 555 16
1000 1 2000-100B 2000-112B 2000-124B 920 10
2000 1 2000-1121B 2000-1122B 2000-1123B Consult Factory Consult Factory
4000 1 2000-1124B 2000-1125B 2000-1126B Consult Factory Consult Factory
5333.3 1 2000-1127B 2000-1128B 2000-1129B Consult Factory Consult Factory





For more information, please check the Gemco rotary limit switch brochure

More Information
SKU GEMCO-2000WG
Shipping Weight (LBS) 9.000000
Manufacturer Ametek
Manufacturer Part Number 2000
Country of Manufacture United States
Switch Contact Configuration SPDT
