B/W Controls 1500 Series Relay Wiring Diagrams

Pump-Up Configuration

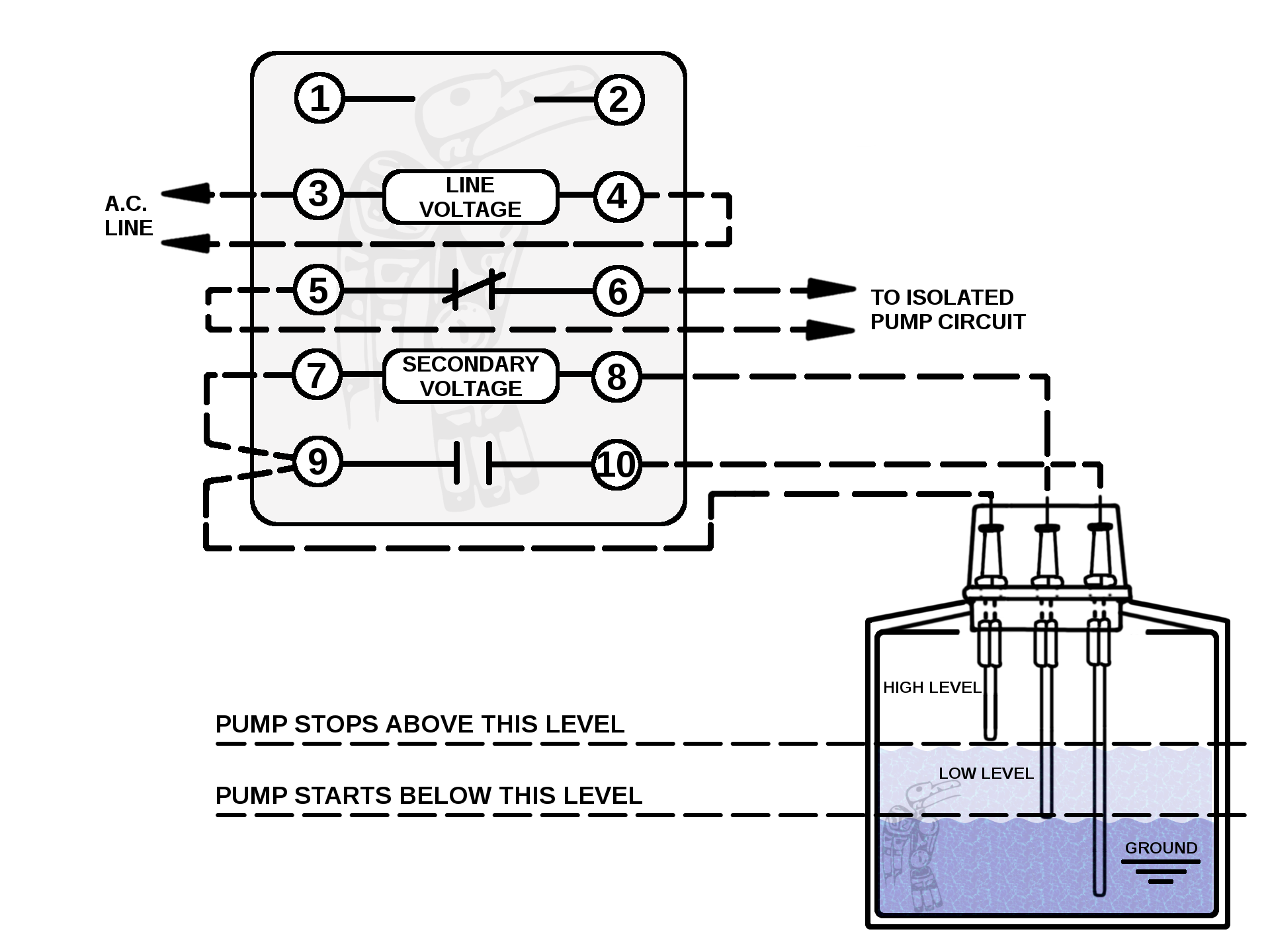

1500-D with Isolated Pump Circuit

1500-D

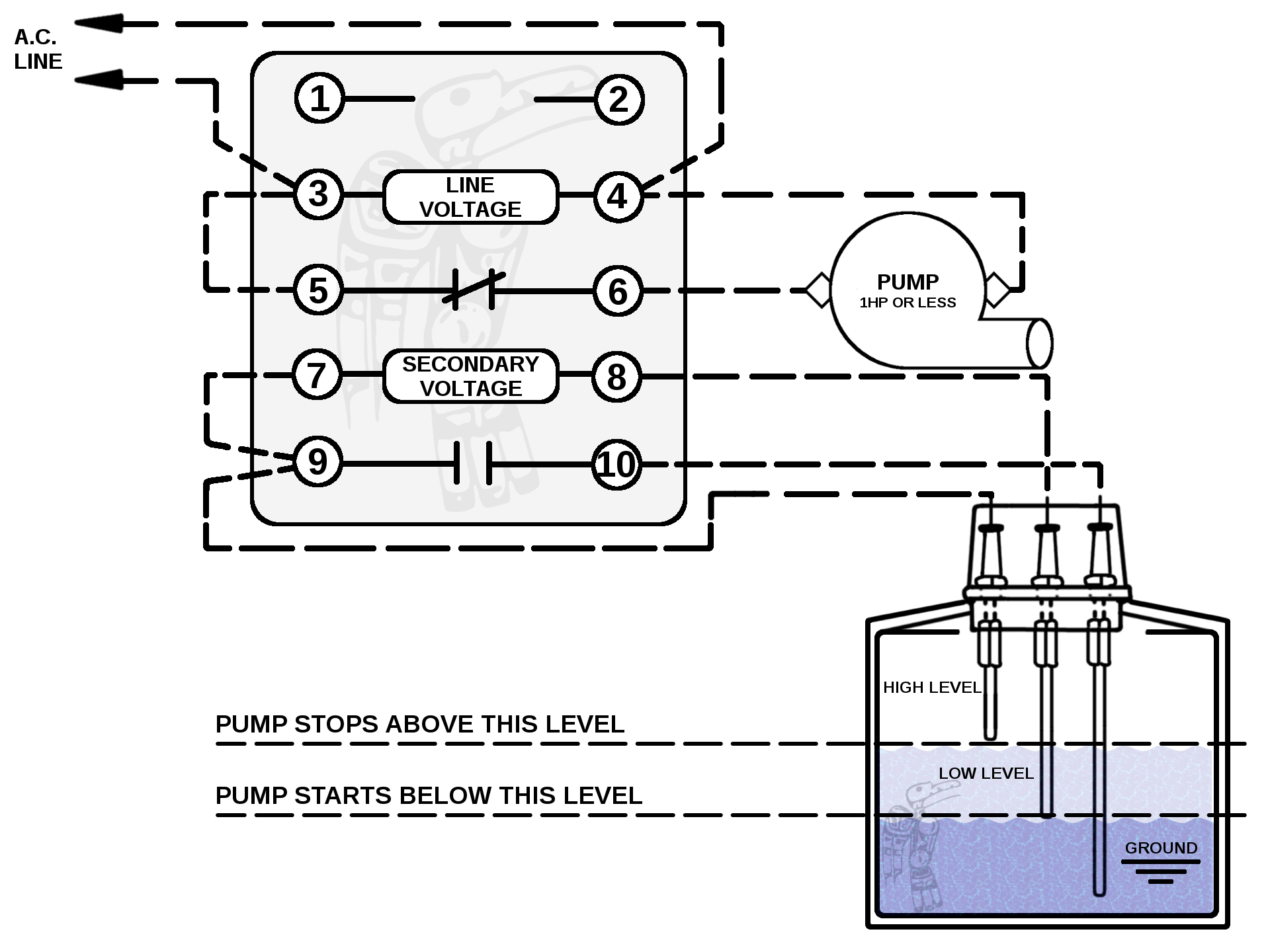

1500-D Directly to Pump

1500-D Direct to Pump

Pump-Down Configuration

1500-C with Isolated Pump Circuit

1500-C

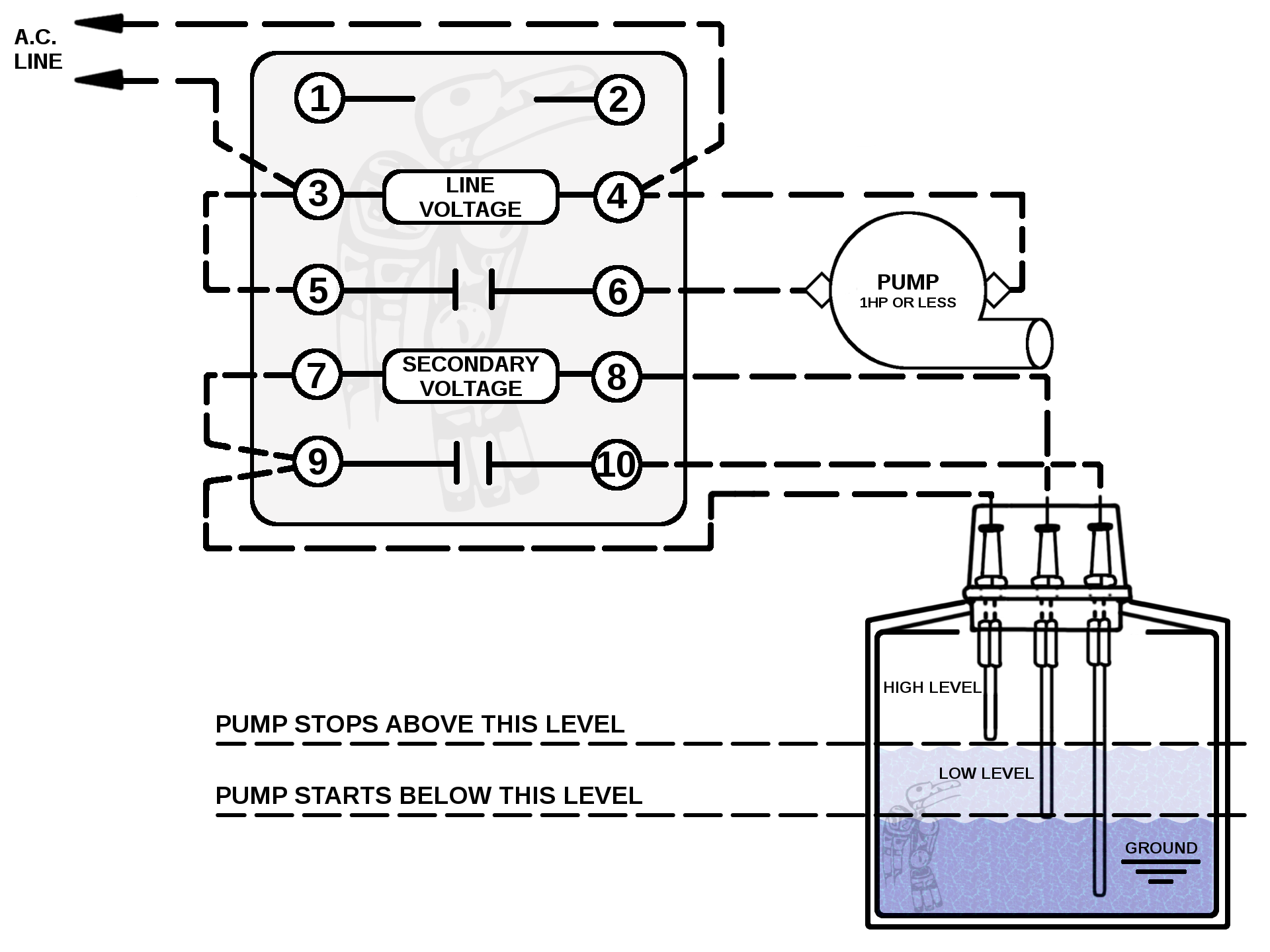

1500-C Directly to Pump

1500-C Direct to Pump

Pump-Up or Pump-Down

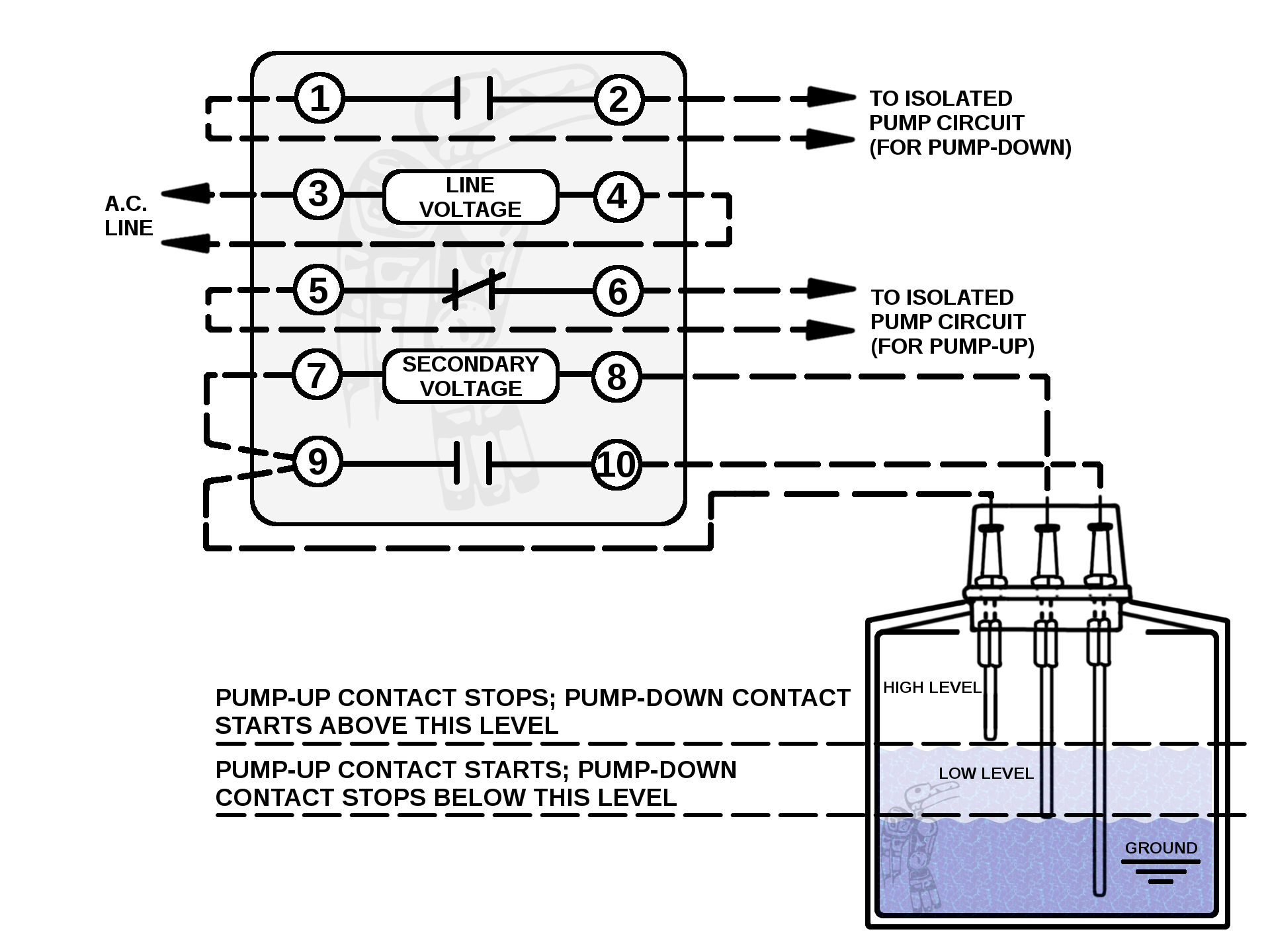

1500-G

1500-G
