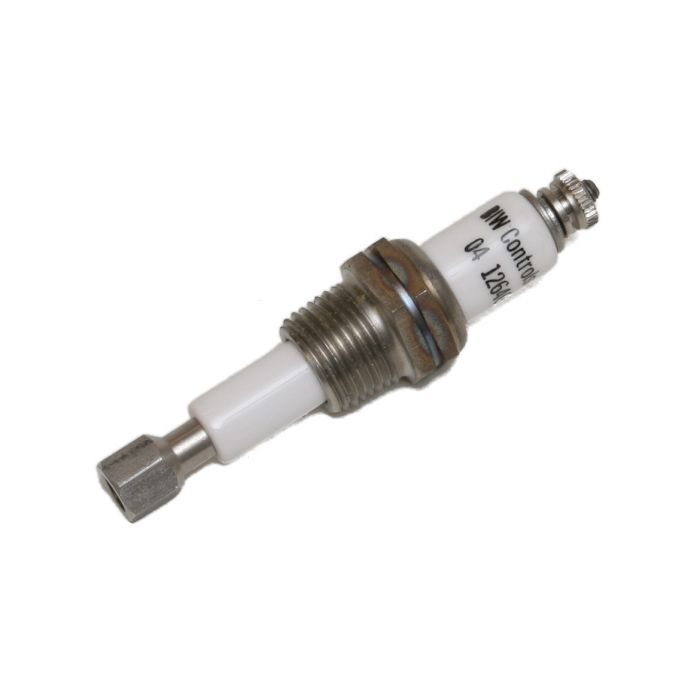

Ametek B/W Controls 6012-EP1 Electrode Plug

$190.00
In stock
SKU
BW-6012EP1

B/W electrode plug for type E cast holders.

  • Ceramic insulator
  • Glass and copper seal

B/W electrode plugs are typically installed in B/W type E cast holders. They provide a strong, pressure tight mechanical mounting for solid rod electrodes. They can also be used with wire suspension electrodes when coupled with the 6013-CSS wire connector (not included). Plugs mount to the holder using a 3/8-18 dryseal (PTF) SAE short pipe thread. 6012-EP1 plugs are labeled with B/W Controls part number 04126400.

  • Holds one electrode (not included)
  • 303 stainless shell
  • Ceramic insulator
  • Glass and copper seal
  • Suitable for up to 2000 PSI at 200 F
  • Suitable for up to 700F at 100 PSI

For more infomation, please see the Ametek B/W Controls catalog.

More Information
SKU BW-6012EP1
Shipping Weight (LBS) 0.500000
Manufacturer Ametek
Manufacturer Part Number 6012-EP1
Alternate Catalog / Part Numbers 04126400 04-126400 126400
Country of Manufacture United States
