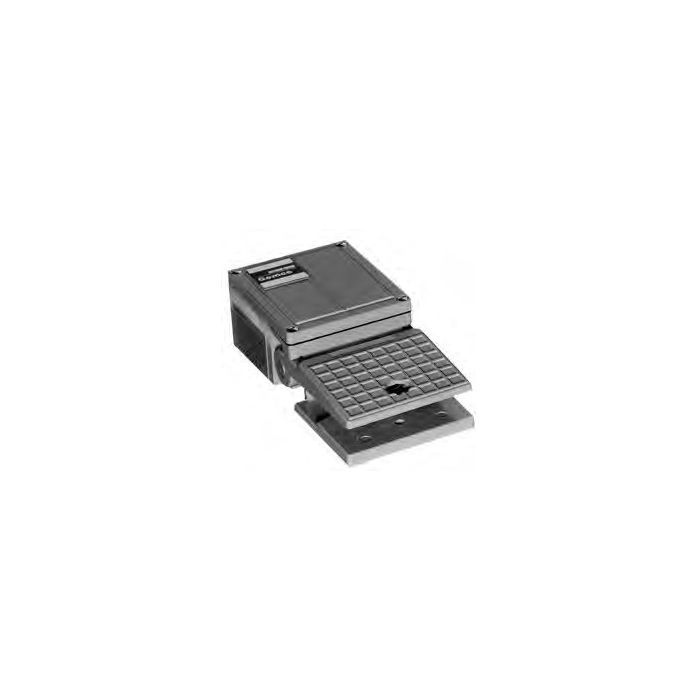

Ametek Gemco 1025B Foot Switch
Heavy duty treadle operated foot switch with 1 or 2 contact blocks in a NEMA 4 enclosure. Also available with 4-way air valve. Frequently used to control industrial applications such as press brakes, welding machines or other production processes.
The 1025B Heavy Duty switch is designed to control industrial applications such as press brakes, welding machines or other production processes.The basic switch is a foot operated treadle device with one or two SPDT or DPDT switches. A 4-way 5-port. Air valve control is also available.
NEMA Type 4 die cast enclosures incorporate a synthetic gasket which prevents exposure to oil, water and dust.
Features:
- foot switches are two or three position, spring return
- front treadle operated.
- NEMA Type 4 die cast enclosures
- Adjustable two step or second stage operation treadle travel
- Treadle pressure release returns switch to normally closed contacts
- 1 or 2 contact blocks or air valve
- SPDT or DPDT Industrial Duty Switches
- Multiple switch cover options
- Available treadle latch return on right or left
- Three holes for base mounting and a 3/4 inch tapped conduit entrance
Usually ships 10 - 15 working days after receipt of order
If you have any questions about using this product in your application, please do not hesitate to call or email us.
| Switch/ Valve | Cover Options | Treadle Latch |
Gemco Catalog # |
| 1 SPDT | plain cover | no | 1025-B-1SP-P-X |
| 1 SPDT | plain cover | yes | 1025-B-1SP-P-L |
| 1 SPDT | treadle guard | no | 1025-B-1SP-G-X |
| 1 SPDT | treadle guard | yes | 1025-B-1SP-G-L |
| 1 SPDT | treadle shield | no | 1025-B-1SP-S-X |
| 1 SPDT | treadle shield | yes | 1025-B-1SP-S-L |
| 1 SPDT | ultra guard | no | 1025-B-1SP-U-X |
| 1 SPDT | ultra guard | yes | 1025-B-1SP-U-L |
| 2 SPDT | plain cover | no | 1025-B-2SP-P-X |
| 2 SPDT | plain cover | yes | 1025-B-2SP-P-L |
| 2 SPDT | treadle guard | no | 1025-B-2SP-G-X |
| 2 SPDT | treadle guard | yes | 1025-B-2SP-G-L |
| 2 SPDT | treadle shield | no | 1025-B-2SP-S-X |
| 2 SPDT | treadle shield | yes | 1025-B-2SP-S-L |
| 2 SPDT | ultra guard | no | 1025-B-2SP-U-X |
| 2 SPDT | ultra guard | yes | 1025-B-2SP-U-L |
| 1 DPDT | plain cover | no | 1025-B-1DP-P-X |
| 1 DPDT | plain cover | yes | 1025-B-1DP-P-L |
| 1 DPDT | treadle guard | no | 1025-B-1DP-G-X |
| 1 DPDT | treadle guard | yes | 1025-B-1DP-G-L |
| 1 DPDT | treadle shield | no | 1025-B-1DP-S-X |
| 1 DPDT | treadle shield | yes | 1025-B-1DP-S-L |
| 1 DPDT | ultra guard | no | 1025-B-1DP-U-X |
| 1 DPDT | ultra guard | yes | 1025-B-1DP-U-L |
| 2 DPDT | plain cover | no | 1025-B-2DP-P-X |
| 2 DPDT | plain cover | yes | 1025-B-2DP-P-L |
| 2 DPDT | treadle guard | no | 1025-B-2DP-G-X |
| 2 DPDT | treadle guard | yes | 1025-B-2DP-G-L |
| 2 DPDT | treadle shield | no | 1025-B-2DP-S-X |
| 2 DPDT | treadle shield | yes | 1025-B-2DP-S-L |
| 2 DPDT | ultra guard | no | 1025-B-1DP-U-X |
| 2 DPDT | ultra guard | yes | 1025-B-1DP-U-L |
| 4 Way 5 Port Air Switch | plain cover | no | 1025-B-1A4-P-X |
| 4 Way 5 Port Air Switch | plain cover | yes | 1025-B-1A4-P-L |
| 4 Way 5 Port Air Switch | treadle guard | no | 1025-B-1A4-G-X |
| 4 Way 5 Port Air Switch | treadle guard | yes | 1025-B-1A4-G-L |
| 4 Way 5 Port Air Switch | treadle shield | no | 1025-B-1A4-S-X |
| 4 Way 5 Port Air Switch | treadle shield | yes | 1025-B-1A4-S-L |
| 4 Way 5 Port Air Switch | ultra guard | no | 1025-B-1A4-U-X |
| 4 Way 5 Port Air Switch | ultra guard | yes | 1025-B-1A4-U-L |
| Part Number Cross Reference | ||
| Switch Type |
Cutler-Hammer Part Number |
Gemco Part Number |
| B | 10251-H33B | 1025-B-1SP-P-X |
| B | 10251-H34B | 1025-B-1SP-P-X |
| B | 10251-H35C | 1025-B-1SP-S-X |
| B | 10251-H40B | 1025-B-2SP-G-X |
| B | 10251-H41C | 1025-B-2SP-S-X |
| B | 10251-H42B | 1025-B-2SP-P-L |
| B | 10251-H43B | 1025-B-2SP-G-L |
| B | 10251-H44C | 1025-B-2SP-S-L |
| B | 10251-H47C | 1025-1402 |
For more information, please check the Gemco 1025 brochure or Gemco 1025B data sheet
| SKU | Gemco-1025-B |
|---|---|
| Shipping Weight (LBS) | 7.000000 |
| Manufacturer | Ametek |
| Manufacturer Part Number | 1025-B |
| Country of Manufacture | United States |
