Ametek Gemco 955A BRIK Gen III Linear Displacement Transducer - Analog output

$613.00

Maximum number of characters: 40

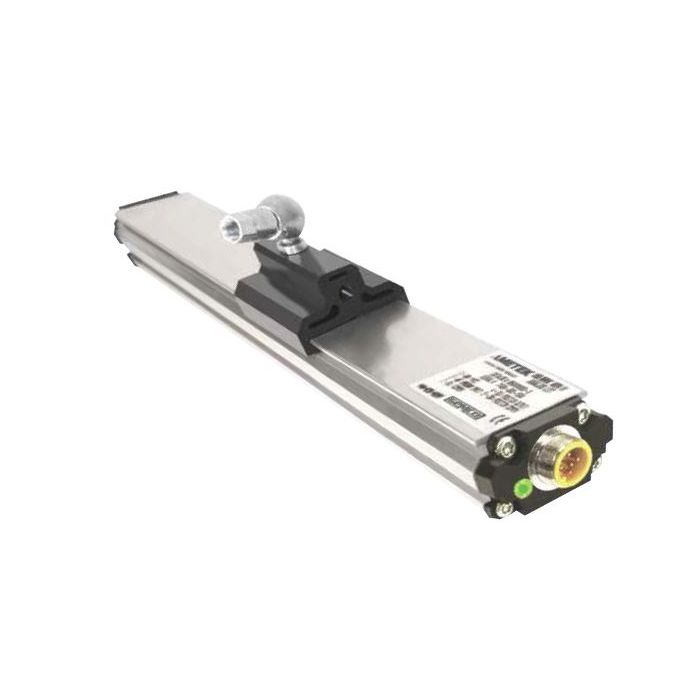

Linear Displacement Transducer (LDT) with an analog output, in a low profile extruded aluminum package. Pictured with SD0521800 slide magnet (not included). Uses Ametek's field proven magnetostrictive technology to give absolute position, repeatable to .006% of the programmable sensing distance.

The 955A is a Linear Displacement Transducer (LDT) with an analog output, in a low profile extruded aluminum package. This transducer uses Ametek's field proven magnetostrictive technology to give absolute position, repeatable to .006% of the programmable sensing distance. The Ametek 955 series has an auto tuning feature that allows it to sense a magnet other than the standard slide magnet and adjust its signal strength accordingly.

Pictured with SD0521800 slide magnet (not included).

For stroke lengths over 72", please contact us.

A complete system normally requires the following components:

  • 955A transducer
  • Magnet (purchased separately)
  • Cable Assembly (purchased separately)
  • Mounting feet (purchased separately). It is recommended to use one mounting foot at each end and one every three feet between.

Usually ships 10 - 15 working days after receipt of order

Gemco linear displacement transducers are built to order, and are not returnable. If you have any questions about using this product in your application, please do not hesitate to call or email us.



Accessories (purchased separately)

Slide Magnet SD0521800
Floating Magnet SD0522100
Wide Floating Magnet SD0551500
Mounting Foot SD0522000
6 Ft., 5 Pin Cable 949019L6
12 Ft., 5 Pin Cable 949019L12
6 Ft., 5 Pin Cable; Right Angle Connector 949020L6
12 Ft., 5 Pin Cable; Right Angle Connector 949020L12



Other Resources

955A Datasheet
955A Manual
Linear Displacement Transducers Overview

More Information
SKU GEMCO-955A
Manufacturer Ametek
Manufacturer Part Number 955A
Alternate Catalog / Part Numbers N/A
Supply Voltage 13.5-30 VDC
Analog Output: 4-20 mA Yes
Analog Output: 0-10 VDC Yes
Digital Output: Stop/Start No
Digital Output: Control Pulse No
Digital Output: Pulse Width Modulated No
Digital Output: Velocity No
Digital Output: Ethernet/IP No
Digital Output: SSI (Synchronous Serial Interface) No
Digital Output: Modbus No
Position Accuracy (of full stroke) 0.05%
Repeatability (of full stroke) 0.006%
Resolution Internal Resolution 0.001”
Lengths - 0.1" Increments 5 - 180”
Null Zone 3"
Dead Band 2"
In Cylinder Mounting No
Enclosure Rating (IP) IP67, IP68 Optional
Optional Mill Duty Housing No
Hand-Held Programmer Yes
Programmable from PC Consult Factory
Competitive Style Connector No
High Shock and Vibration Good
Multiple Magnets No
Universal Mounting Kit Yes
Metric Threads and Dimensions Yes
All Stainless Steel (Head & Potted Connector) No
High Temp Cables No
