Ametek Gemco 955D-CP BRIK Gen III Linear Displacement Transducer - RS422 Control Pulse Digital Output (Special Order)

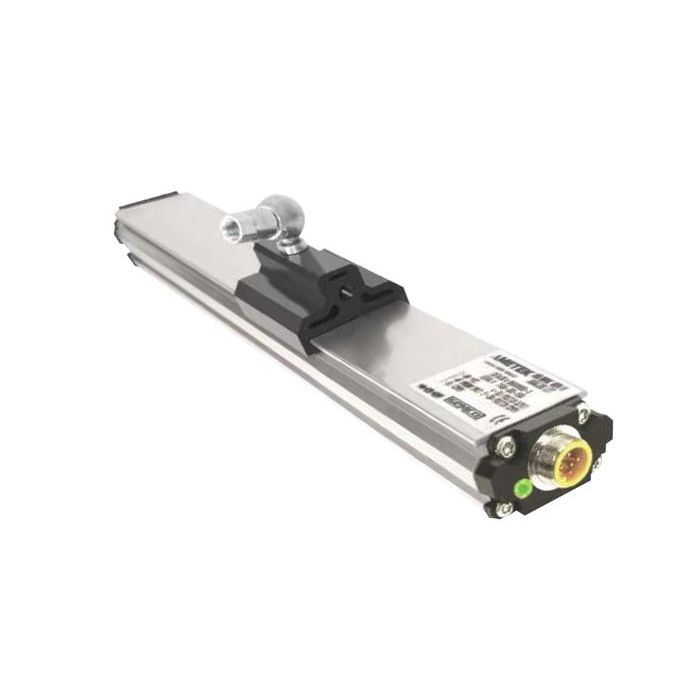

Digital output Linear Displacement Transducer (LDT) in a low profile extruded aluminum package. RS-422 Control Pulse output. Pictured with SD0521800 slide magnet (not included). Uses Ametek's field proven magnetostrictive technology to give absolute position, repeatable to .006% of the programmable sensing distance
The 955D-CP is a digital output Linear Displacement Transducer (LDT) in a low profile extruded aluminum package. This transducer uses Ametek's field proven magnetostrictive technology to give absolute position, repeatable to .006% of the programmable sensing distance. The Ametek 955 series has an auto tuning feature that allows it to sense a magnet other than the standard slide magnet and adjust its signal strength accordingly.
The 955D control pulse system generates digital outputs over an RS-422 line. The system looks for a one microsecond minimum input pulse, or start pulse, which is generated by the customer’s computer device. The 955D will then generate a stop pulse approximately one microsecond in duration. The time between the launch of the start pulse and the receipt of the stop pulse is proportional to the position of the magnet.
Pictured with SD0521800 slide magnet (not included).
A complete system normally requires the following components:
- 955D transducer
- Magnet (purchased separately)
- Cable Assembly (purchased separately)
- Mounting feet (purchased separately). It is recommended to use one mounting foot at each end and one every three feet between.
Usually ships 8-10 weeks after receipt of order
Gemco linear displacement transducers are built to order, and are not returnable. If you have any questions about using this product in your application, please do not hesitate to call or email us.
Accessories (purchased separately)
| Slide Magnet | SD0521800 |
| Floating Magnet | SD0522100 |
| Wide Floating Magnet | SD0551500 |
| Mounting Foot | SD0522000 |
| 6 Ft., 6 Pin Cable | 949021L6 |
| 12 Ft., 6 Pin Cable | 949021L12 |
| 6 Ft., 6 Pin Cable; Right Angle Connector | 949022L6 |
| 12 Ft., 6 Pin Cable; Right Angle Connector | 949022L12 |
Other Resources
955D Datasheet
955D Manual
Linear Displacement Transducers Overview
| SKU | GEMCO-955DCP |
|---|---|
| Manufacturer | Ametek |
| Manufacturer Part Number | 955D-CP |
| Country of Manufacture | United States |
| Shipping Weight (LBS) | 17.000000 |
| Supply Voltage | 13.5-30 VDC |
| Analog Output: 4-20 mA | No |
| Analog Output: 0-10 VDC | No |
| Digital Output: Stop/Start | No |
| Digital Output: Control Pulse | Yes |
| Digital Output: Pulse Width Modulated | No |
| Digital Output: Velocity | Controller Dependent |
| Digital Output: Ethernet/IP | No |
| Digital Output: SSI (Synchronous Serial Interface) | No |
| Digital Output: Modbus | No |
| Position Accuracy (of full stroke) | 0.05% |
| Repeatability (of full stroke) | 0.006% |
| Resolution | Controller Dependent |
| Lengths - 0.1" Increments | 5-180” |
| Null Zone | 3” |
| Dead Band | 2" |
| In Cylinder Mounting | No |
| Enclosure Rating (IP) | IP67, IP68 Optional |
| Optional Mill Duty Housing | No |
| Hand-Held Programmer | Consult Factory |
| Programmable from PC | Consult Factory |
| Competitive Style Connector | No |
| High Shock and Vibration | Good |
| Multiple Magnets | Yes |
| Universal Mounting Kit | Yes |
| Metric Threads and Dimensions | Yes |
| All Stainless Steel (Head & Potted Connector) | No |
| High Temp Cables | No |
