Ametek Gemco 955DQ BRIK Gen III Linear Displacement Transducer - Quadrature Output

$641.00

Maximum number of characters: 4

Maximum number of characters: 20

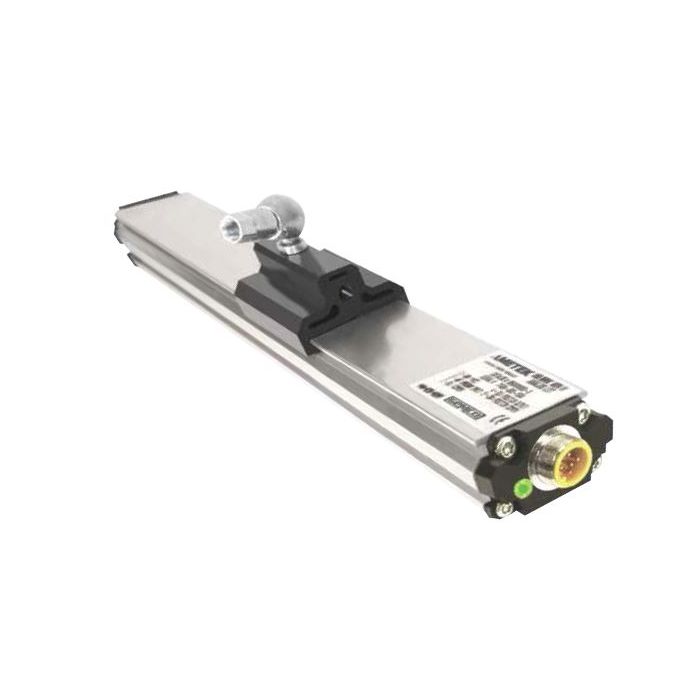

Linear Displacement Transducer (LDT) with quadrature output in a low profile extruded aluminum package. Pictured with SD0521800 slide magnet (not included). Uses Ametek's field proven magnetostrictive technology to give absolute position, repeatable to .006% of the programmable sensing distance.

The 955DQ is a Linear Displacement Transducer (LDT) with quadrature output in a low profile extruded aluminum package. This transducer uses Ametek's field proven magnetostrictive technology to give absolute position, repeatable to .006% of the programmable sensing distance. The Ametek 955 series has an auto tuning feature that allows it to sense a magnet other than the standard slide magnet and adjust its signal strength accordingly.

The quadrature output 955DQ is designed to send position data directly to a high speed input with resolutions up to 9,999 cycles per inch. The transducer position is absolute and has a burst mode that sends absolute position data when the controller initiates an input signal. Re-homing is not required and the zero position can be reset at any time. Data output is provided in engineering units eliminating the need for calibration constant (wire speed) programming. Output resolution, frequency, and mode must be specified to meet the requirements of the controller. The units can be ordered in span lengths from 5” to 180” in 0.1” increments.

Pictured with SD0521800 slide magnet (not included).

A complete system normally requires the following components:

  • 955DQ transducer
  • Magnet (purchased separately)
  • Cable Assembly (purchased separately)
  • Mounting feet (purchased separately). It is recommended to use one mounting foot at each end and one every three feet between.

Usually ships 10 - 15 working days after receipt of order

Gemco linear displacement transducers are built to order, and are not returnable. If you have any questions about using this product in your application, please do not hesitate to call or email us.



Accessories (purchased separately)

Slide Magnet SD0521800
Floating Magnet SD0522100
Wide Floating Magnet SD0551500
Mounting Foot SD0522000
6 Ft., 12 Pin Cable 949023L6
12 Ft., 12 Pin Cable 949023L12



Other Resources

955DQ Datasheet
955DQ Manual
Linear Displacement Transducers Overview

More Information
SKU GEMCO-955DQ
Manufacturer Ametek
Manufacturer Part Number 955DQ
Alternate Catalog / Part Numbers N/A
Supply Voltage 13.5-30 VDC
Analog Output: 4-20 mA No
Analog Output: 0-10 VDC No
Digital Output: Stop/Start No
Digital Output: Control Pulse No
Digital Output: Pulse Width Modulated No
Digital Output: Velocity No
Digital Output: Ethernet/IP No
Digital Output: SSI (Synchronous Serial Interface) No
Digital Output: Modbus No
Position Accuracy (of full stroke) 0.05%
Repeatability (of full stroke) 0.006%
Resolution 0.001”
Lengths - 0.1" Increments 5-180”
Null Zone 3"
Dead Band 2"
In Cylinder Mounting No
Enclosure Rating (IP) IP67, IP68 Optional
Optional Mill Duty Housing No
Hand-Held Programmer Consult Factory
Programmable from PC Consult Factory
Competitive Style Connector No
High Shock and Vibration Good
Multiple Magnets No
Universal Mounting Kit Yes
Metric Threads and Dimensions Yes
All Stainless Steel (Head & Potted Connector) No
High Temp Cables No
