Ametek USG Model 1933 SOLFRUNT Panel Mount Gauge

As low as $284.40 Regular Price $474.00
In stock
Only %1 left

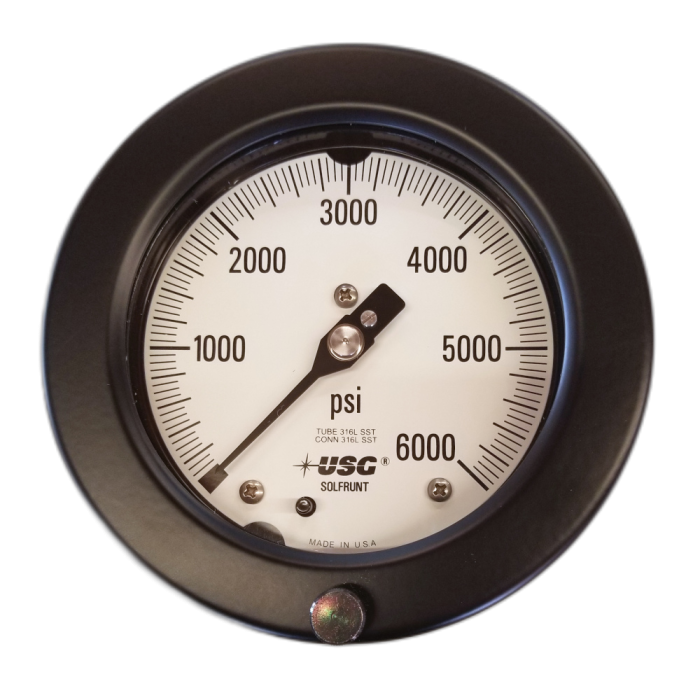

Ametek U.S. Gauge Model 1933 SOLFRUNT Panel Mount Pressure Gauge

Ametek U.S. Gauge Model 1933 SOLFRUNT panel mount pressure gauge. Designed for process applications that require panel mounting, with a pressure relieving back. Calibration adjustments (scale shape and span) can be accomplished from the rear of the case without disturbing the gauge internals. Pointer adjustments are easily made by removing ring and window.

SIZES: 4-1/2"
ACCURACY: ±0.5% of span (Grade 2A)
BOURDON TUBE: 316L stainless steel
WINDOW: High temperature acrylic, laminated shatter-resistant glass options available
MOVEMENT: Geared ARC-LOC with components of corrosion resistant 300 series stainless steel. Movement can be removed for examination and cleaning without disturbing span and scale shape adjustments
DIAL: Aluminum with baked white background and black markings
POINTER: Anodized aluminum, micro-adjustable with black finish (optional lazy hand available, part number 074963, with dry gauges only)
CASE AND RING: Panel mount cast aluminum, front-flanged case with steel hinged ring, black finish and pressure-relieving back
CONNECTION: 316L stainless steel, 1/2-14 ANPT standard (1/4-18 ANPT, optional)

More Information
SKU USG-1933
Shipping Weight (LBS) 3.000000
Manufacturer Ametek
Manufacturer Part Number 1933
Country of Manufacture United States
