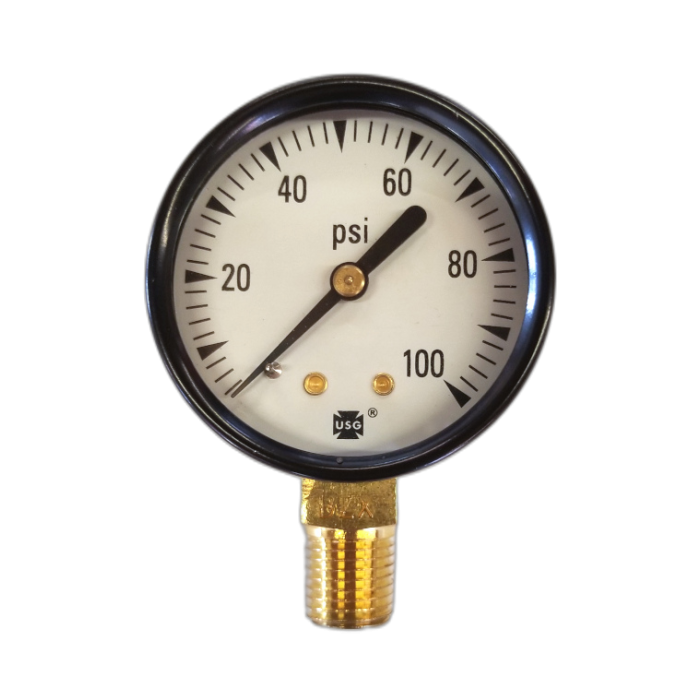

Ametek USG Model P-500LL Pressure Gauge

Ametek U.S. Gauge model P-500LL low lead series pressure gauge. These gauges adhere to the U.S. "Reduction of Lead in Drinking Water Act".

P-500LL series gauges are ideal for a variety of general equipment applications including potable water pumps, compressors, and other equipment.

ACCURACY: ±3-2-3% of span (Grade B)
BOURDON TUBE: Phosphor bronze
WINDOW: 1-1/2" is polycarbonate, 2" is glass
MOVEMENT: Brass
DIAL:  Galvalume with white background and black markings
POINTER: Black aluminum
CASE: Black painted steel
CONNECTION: Brass, center-back or lower mount, 1/8-27 NPT for 1-1/2"; 1/4-18 NPT for 2"
