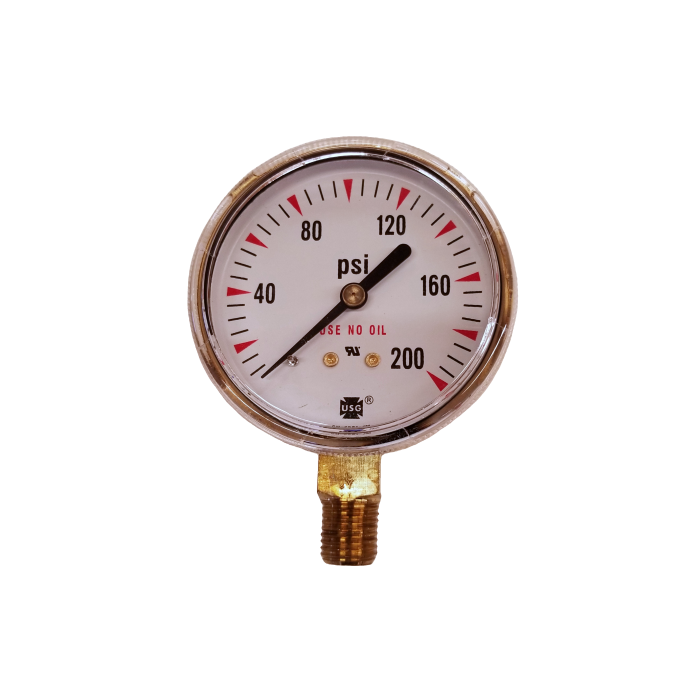

Ametek USG Model P-600 Compressed Gas Pressure Gauge

Ametek U.S. Gauge Model P-600 Compressed Gas Pressure Gauge. Perfect for use on a wide range of regulators. High pressure gauges are used for measuring cylinder or tank pressure, while low pressure gauges are used on the downstream side of the regulator to indicate regulated, reduced pressure.

ACCURACY: ±3-2-3% of span (Grade B)
BOURDON TUBE:
High Pressure – (Models P-601, P-607, or P-697) Phosphor
bronze, silver soldered
Low Pressure – (Models P-612, P-618, or P-698) 15 psi
beryllium copper, 30 psi to 1000 psi phosphor bronze
WINDOW: One-piece polycarbonate
MOVEMENT: Brass
DIAL: Steel, white background with black markings
Major graduations and “USE NO OIL” in red
Custom dials and dual scales available with minimum order
quantity and dial set-up charge
POINTER: Black aluminum
CASE: Polished brass or brass painted steel – chrome plated
steel cases available in minimum order quantities.

MODELS 1-1/2", 2", and 2-1/2"
P-601 – Brass case, high pressure
P-612 – Brass case, low pressure

Features

• Accuracy: ±3-2-3% of span (Grade B)
• UL 404 listed
• Cleanliness in accordance with Level IV of ASME B40, 100-2005.
• ISO5171 available for OEM use
