Assembling a B/W Controls Wire Suspension Electrode

B/W Controls has a number of different wire suspension electrode types. there's the larger 6013-W2, and smaller 6013-W6, but they both assemble in the same way.

What We'll Need

Parts List

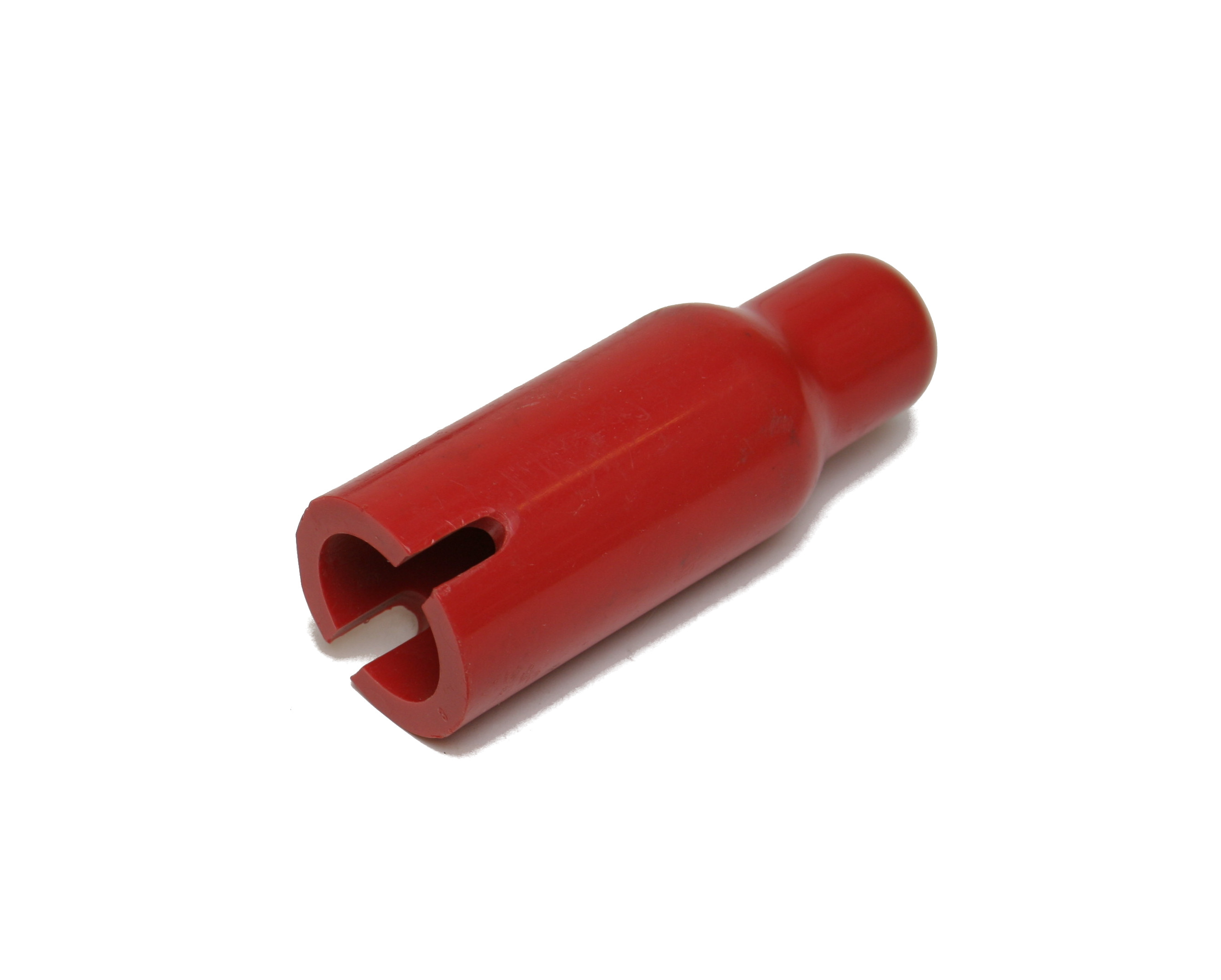

  • Plastic shield
    Shield

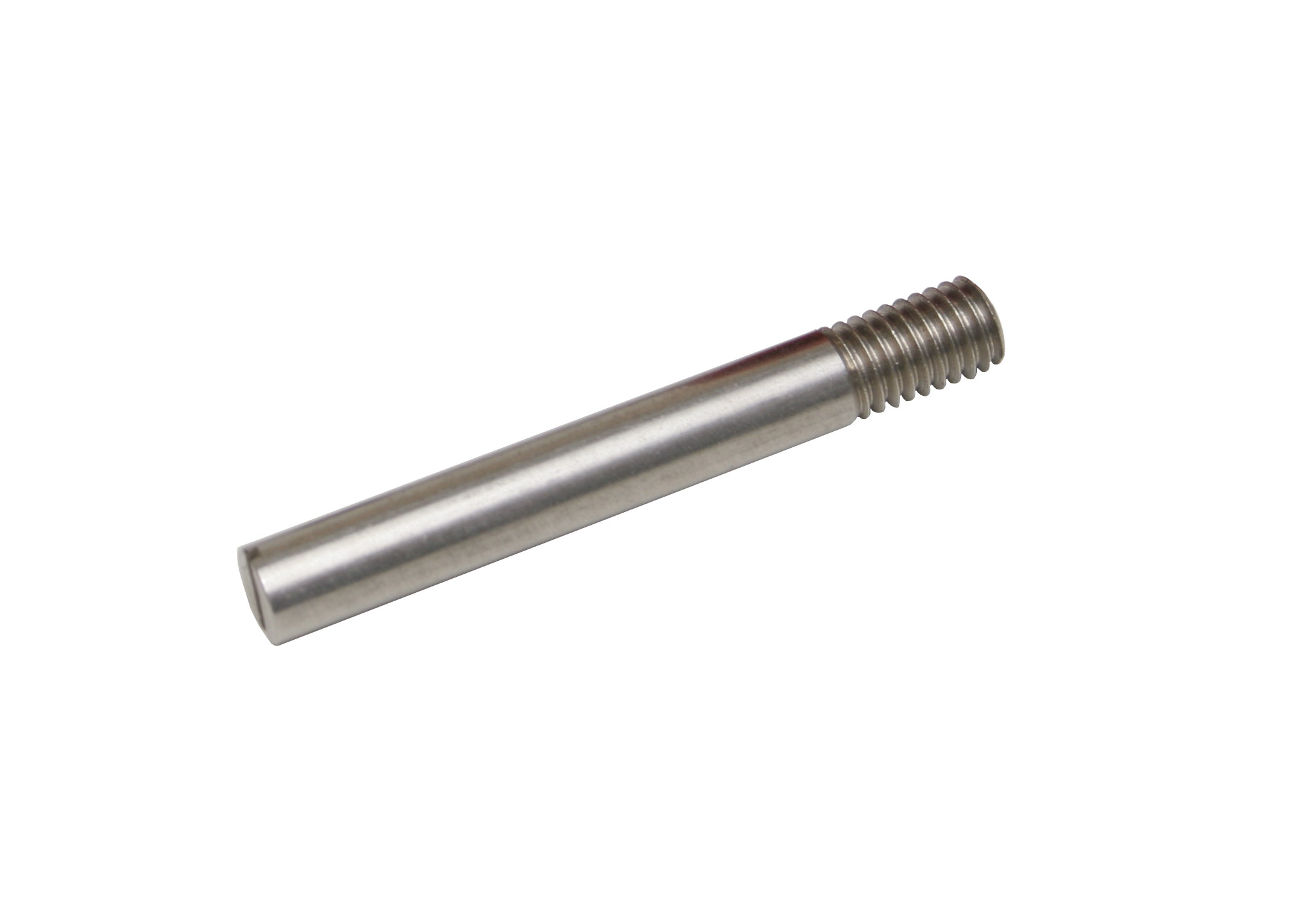

  • Stainless steel or brass electrode
    Electrode

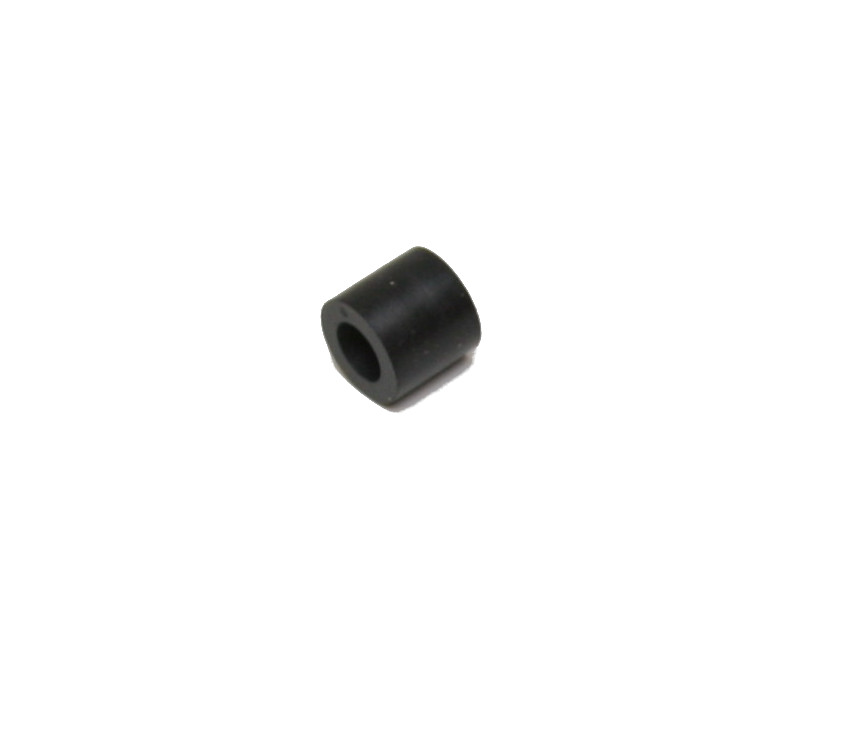

  • Neoprene packing (black cylinder)
    Neoprene Packing

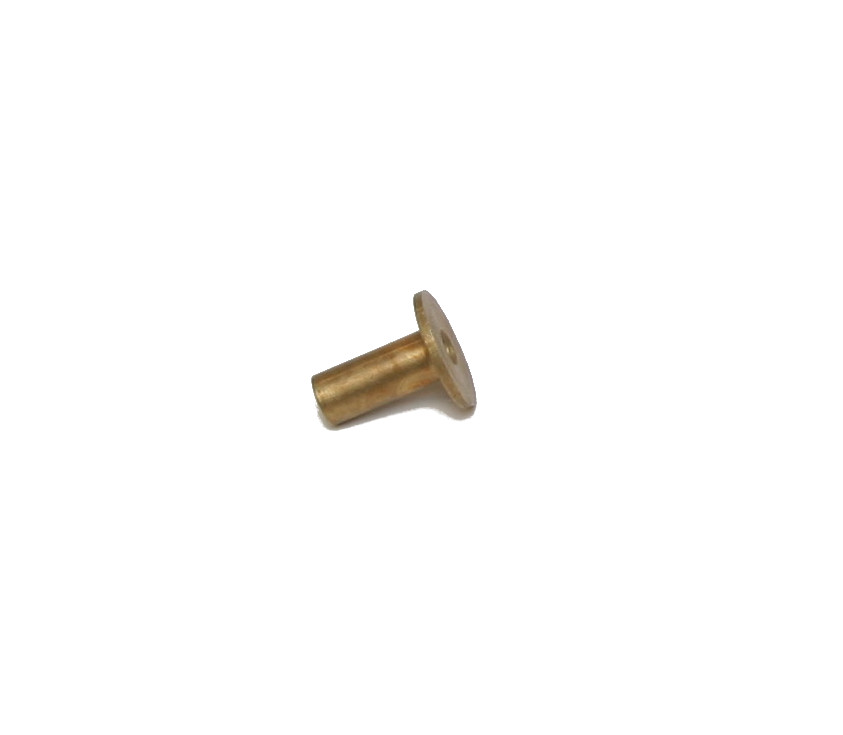

  • Brass wire terminal
    Wire Terminal

Procedure

  1. Slide the plastic shield over the suspension wire.

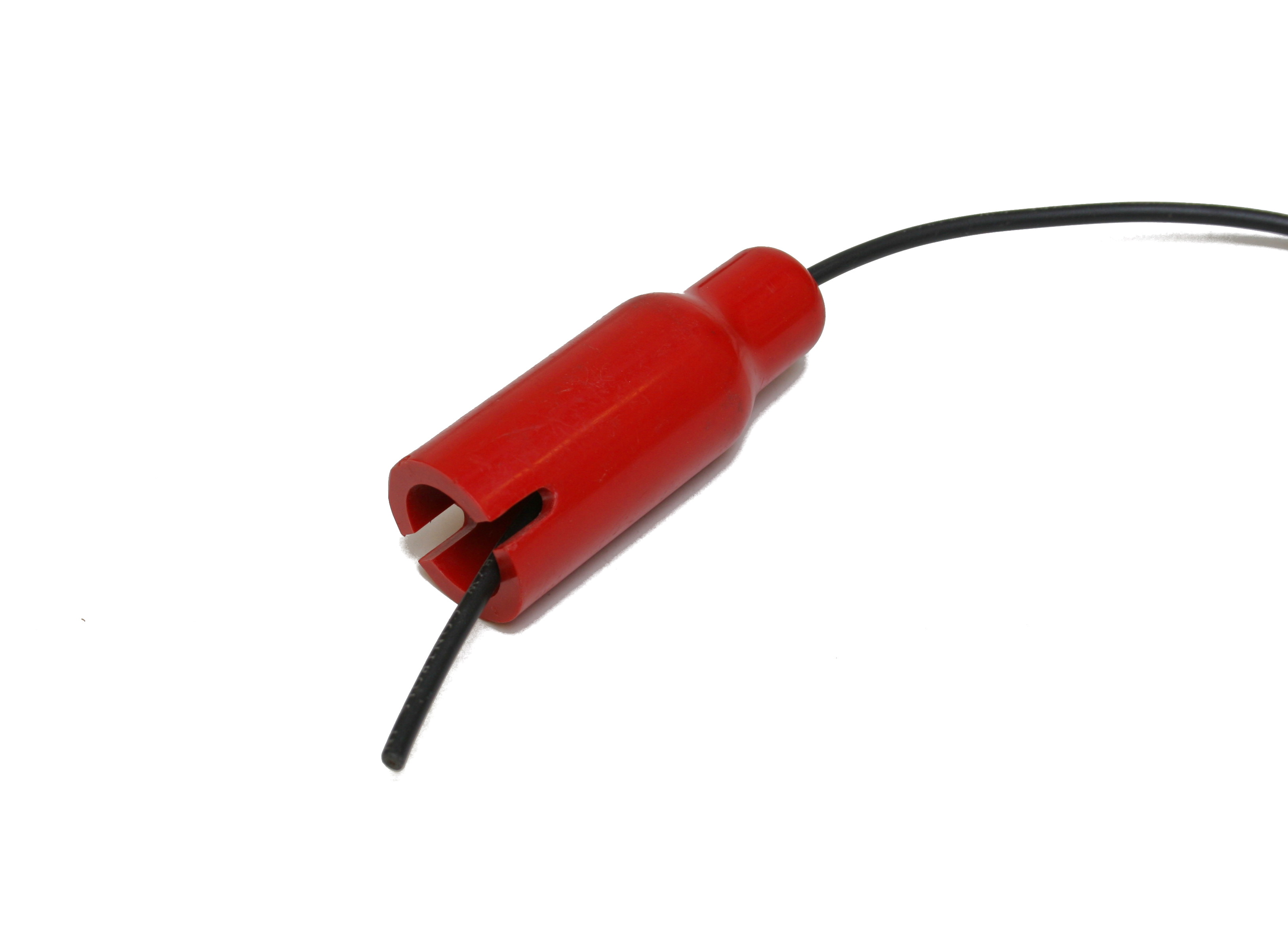

    Step 1

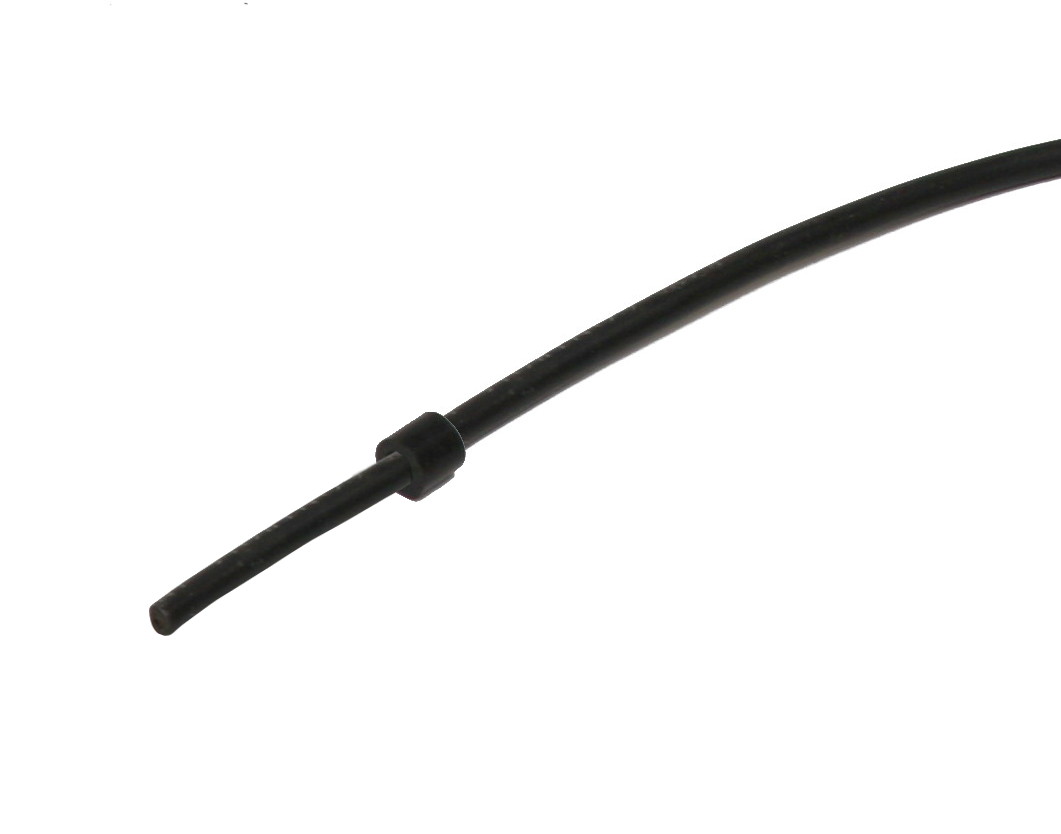

  2. Next, slide the neoprene packing over the wire as well.
    Step 2

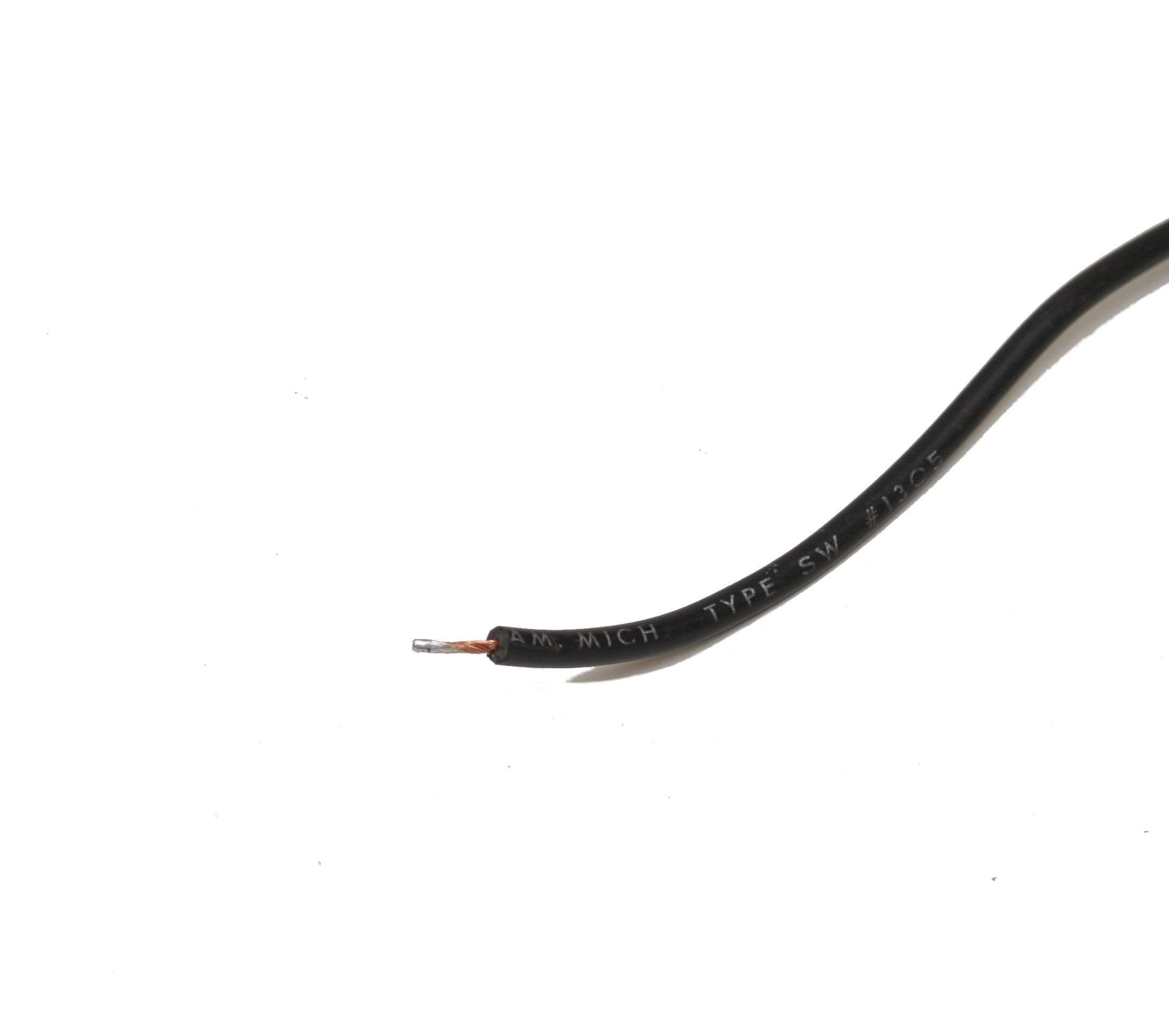

  3. Now strip the wire back about 1/4". This is an 18 gauge wire.
    Step 3

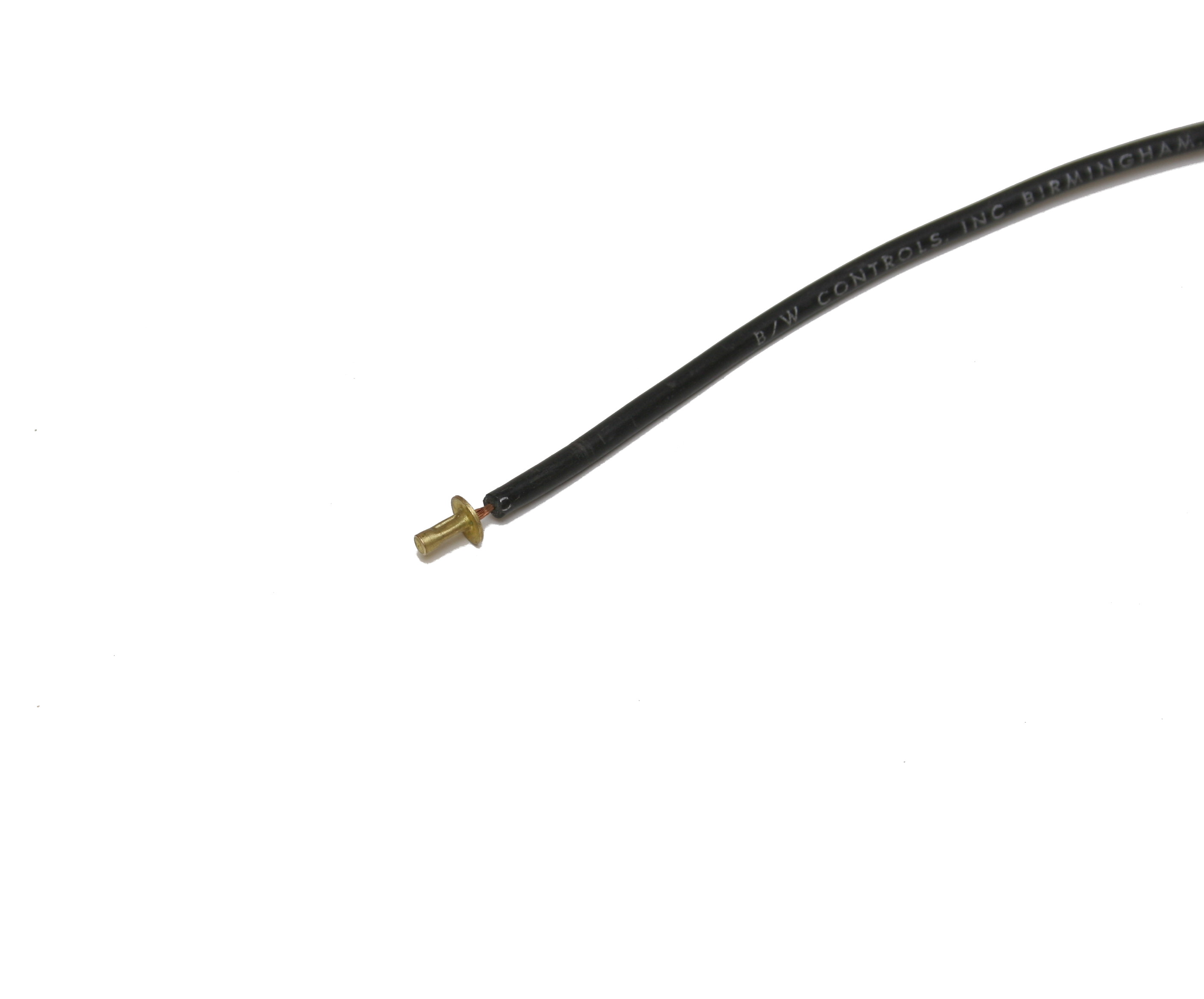

  4. Put the brass wire terminal over the stripped end of the wire, and crimp it securely.
    Step 4

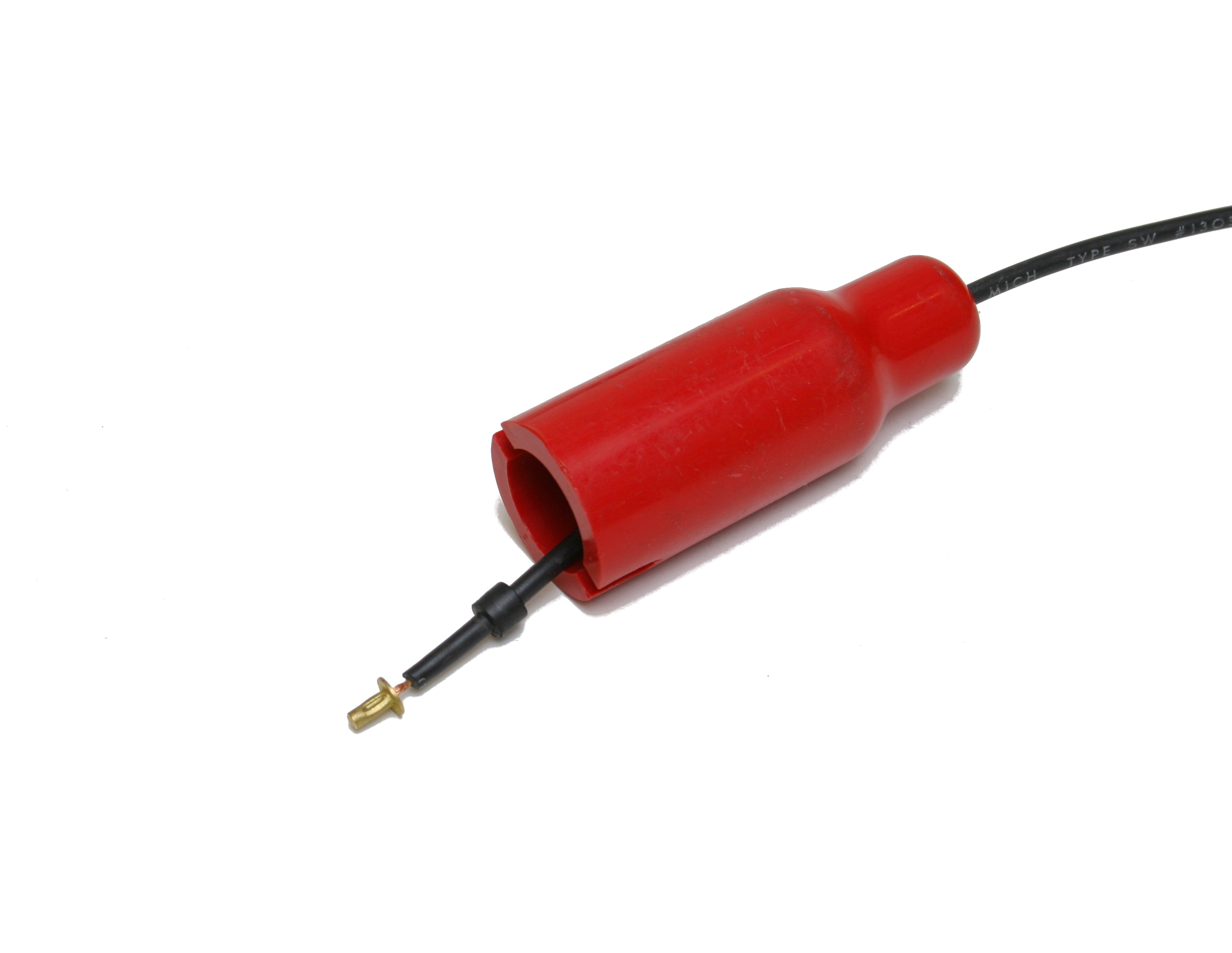

  5. Slide the wire back into the housing. You should hear the brass wire terminal slide past the threads in the housing, and be seated securely.

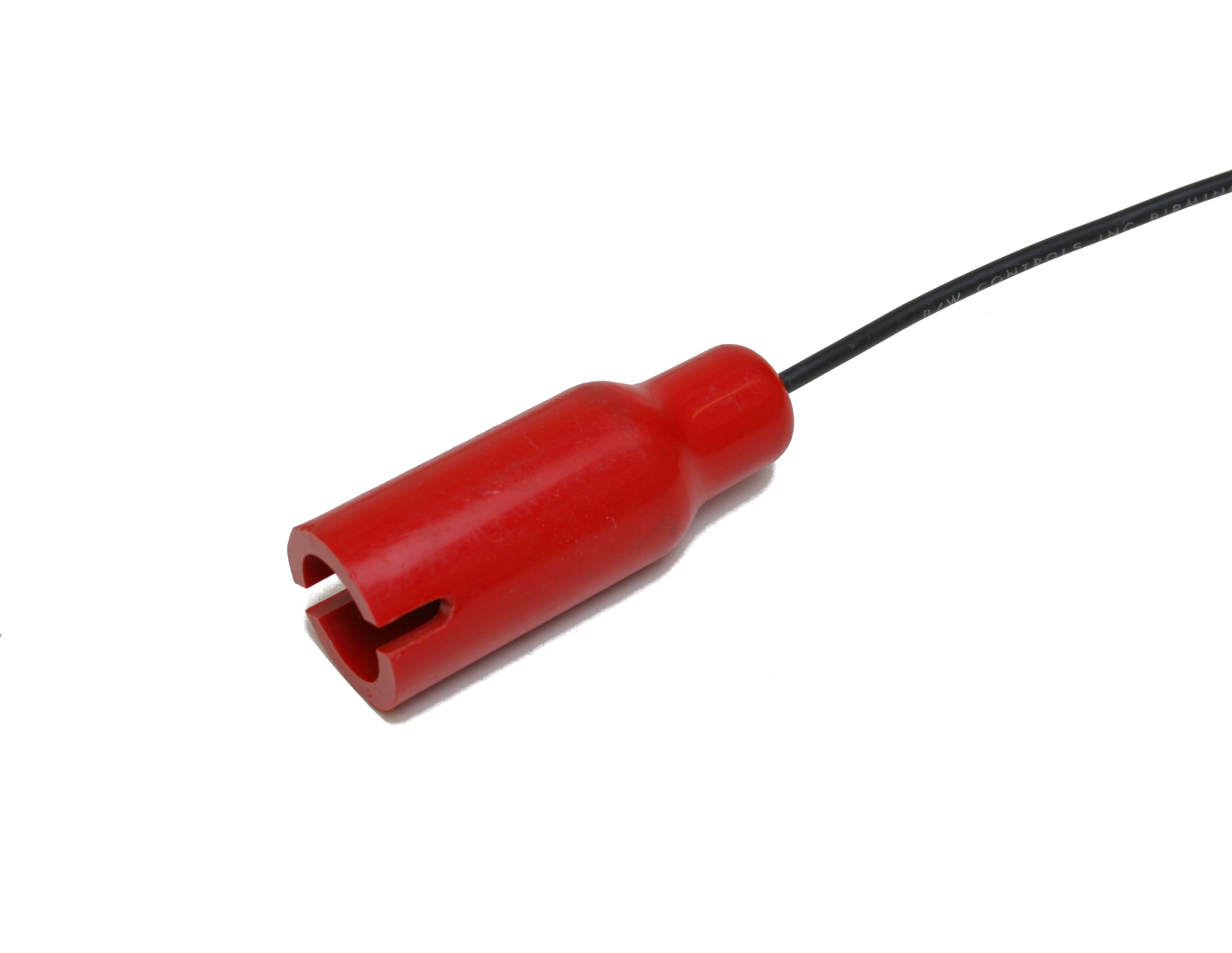

    Step 5-1Step 5-2
  6. Screw the electrode into the threads in the housing, and tighten it.

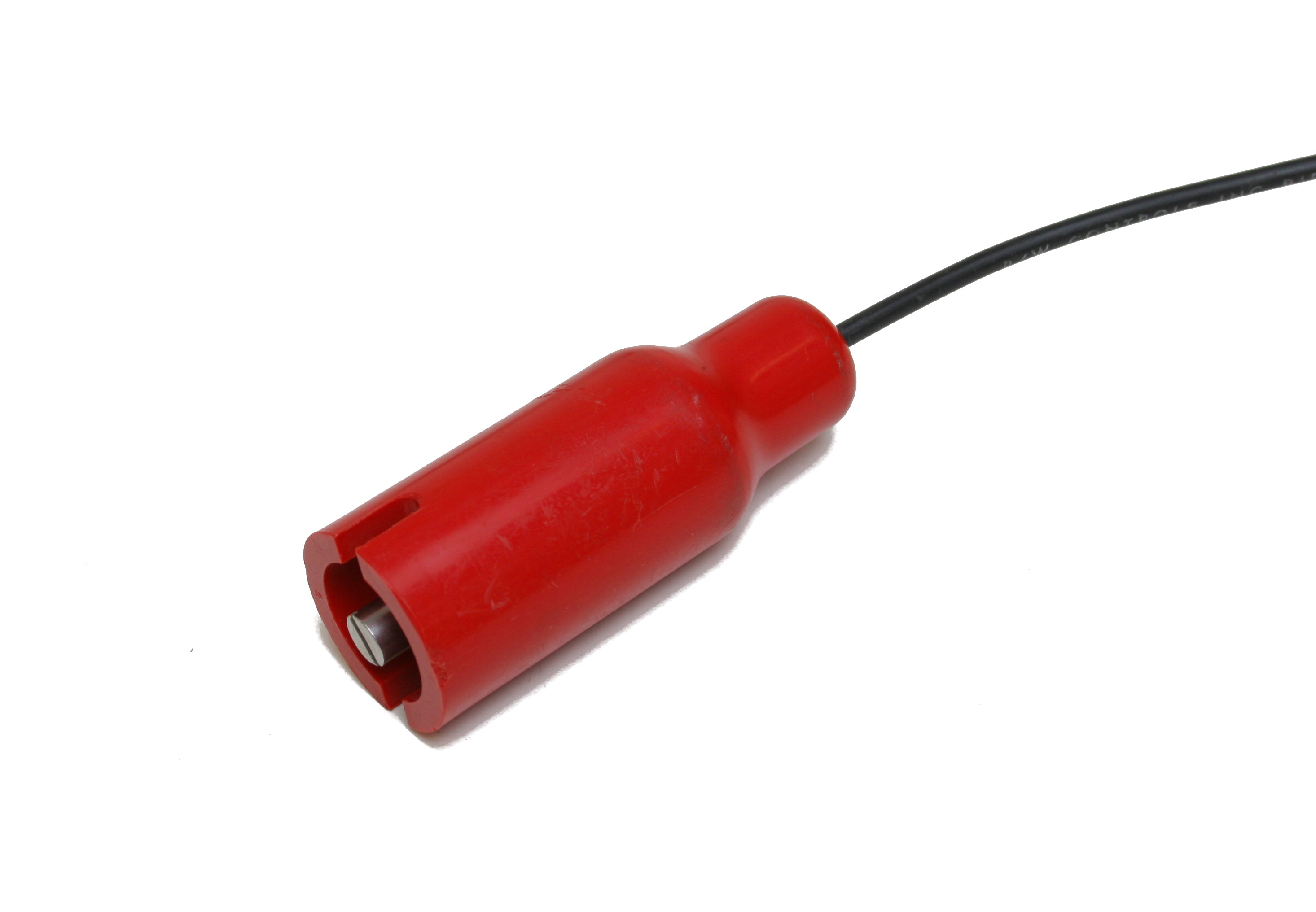

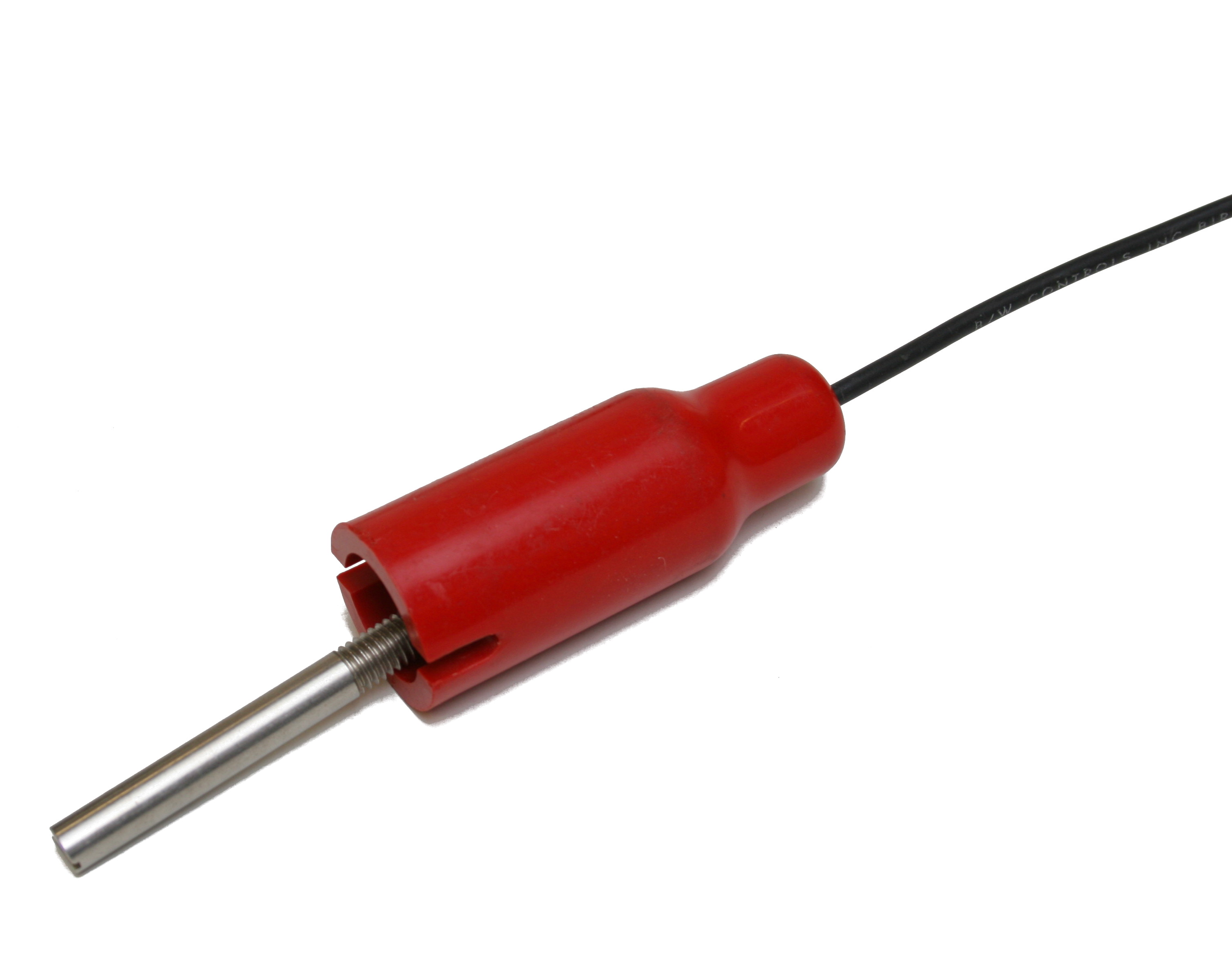

    Step 6-1Step 6-2
