DSG-Canusa CFW Heavy Wall Heat Shrink Tubing
As low as
$15.26
In stock
Only %1 left
SKU
CANUSA-CFW

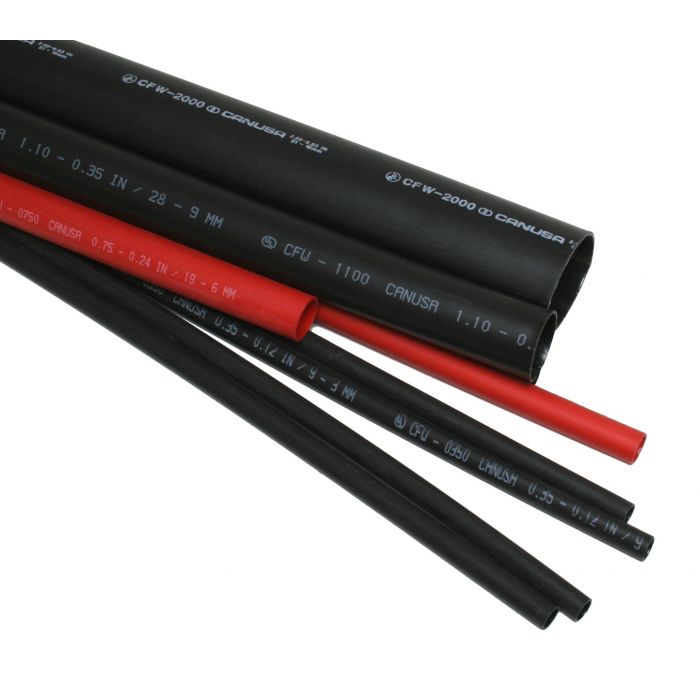

Heavy wall heat shrink tubing with adhesive lining. Recommended for covering 600/1000V single conductor size #14-#10 AWG.
Features:
- 3:1 shrink ratio
- Adhesive Lined
DSG-Canusa heavy wall heat shrink tubing is ideal for applications requiring high abrasion and impact resistance. It withstands severe mechanical requirements of U.R.D., submersible, and direct burial installations. Typical applications are insulation of primary low voltage cables, strain relief, and mechanical protection. When heated to the shrink temperature of 120°C, this tubing will shrink to 1/3 of its original diameter. The thermoplastic adhesive liner provides complete environmental protection and insulation. Recommended for covering 600/1000V single conductor size #14-#10 AWG.
- 3:1 shrink ratio
- Adhesive Lined
- Rated for 1kV, 90°C continuous use
- Made of Polyolefin, for high impact, abrasion, corrosion, and chemical resistance
Canusa Reference Numbers
| Canusa part No. | Catalog Number | Size (Expanded ID) | Color | Packaging |
|---|---|---|---|---|
| 1410350BK0048 | CFW-0350BKPRTD48IN | 0.35" | Black | 48" Lengths |
| 1410500BK0048 | CFW-0500BKPRTD48IN | 1/2" | Black | 48" Lengths |
| 1410500RD0048 | CFW-0500RDPRTD48IN | 1/2" | Red | 48" Lengths |
| 1410750BK0048 | CFW-0750BKPRTD48IN | 3/4" | Black | 48" Lengths |
| 1410750RD0048 | CFW-0750RDPRTD48IN | 3/4" | Red | 48" Lengths |
| 1411100BK0048 | CFW-1100BKPRTD48IN | 1.1" | Black | 48" Lengths |
| 1411500BK0048 | CFW-1500BKPRTD48IN | 1 1/2" | Black | 48" Lengths |
| 1412000BK0048 | CFW-2000BKPRTD48IN | 2" | Black | 48" Lengths |
| 1412700BK0048 | CFW-2700BKPRTD48IN | 2.7" | Black | 48" Lengths |
| 1413700BK0048 | CFW-3500BKPRTD48IN | 3.5" | Black | 48" Lengths |
| 1414700BK0048 | CFW-4700BKPRTD48IN | 4.7" | Black | 48" Lengths |
| SKU | CANUSA-CFW |
|---|---|
| Country of Manufacture | Canada |
| Manufacturer | DSG-Canusa |
| Manufacturer Part Number | CFW |
| Adhesive Lining | Adhesive Lined |
| Shrink Ratio | 3:1 |
| Material | Polyolefin |
