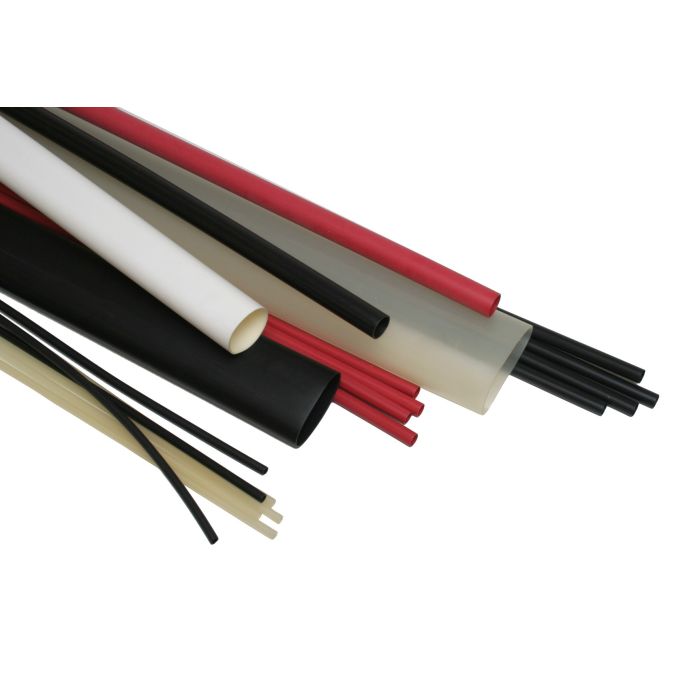

DSG-Canusa CPA100 Thin Wall Adhesive Lined Heat Shrink Tubing

As low as $1.56
In stock
SKU
CANUSA_CPA100

General purpose dual wall heat shrink tubing. Adhesive lining provides an environmental seal against moisture and other contaminants. Sold in spools and 48" lengths.

  • Black
  • Spools and 48" Lengths
  • 3:1 Shrink Ratio
  • Adhesive Lined

DSG-Canusa CPA 100 is a general purpose dual wall heat shrink tubing. The adhesive lining provides an environmental seal against water, moisture, and other contaminants. It is ideal for automotive and marine wire harness bundles, military and industrial splices, breakouts, and connector to cable transitions. When heated to the shrink temperature of 90°C, this tubing will shrink to 1/3 of its original diameter. The inner adhesive bonds to plastics, rubber, neoprene, steel, and polyethylene. Sold in spools and 48 inch lengths.

  • Black
  • Spools and 48" Lengths
  • 3:1 Shrink Ratio
  • Thin Wall Crosslinked Polyolefin, Adhesive Lined
  • Continuous Operating Temperature: -55°C to 110°C
  • Shrink Temperature: 90°C
  • Industrial, Electronic, and Automotive OEM Approvals
Canusa Reference Numbers
Canusa Part No.Catalog NumberSize (Expanded ID)ColorPackaging
5700125BK0048 CPA100-0125BK48IN 1/8" Black 48" Lengths
5700125BK00R5 CPA100-0125BK1000FT 1/8" Black 1000' Spools
5700125CL0048 CPA100-0125CL48IN 1/8" Clear 48" Lengths
5700125RD0048 CPA100-0125RD48IN 1/8" Red 48" Lengths
5700188BK0048 CPA100-0187BK48IN 3/16" Black 48" Lengths
5700188BK00R5 CPA100-0187BK1000FT 3/16" Black 1000' Spools
5700188CL0048 CPA100-0187CL48IN 3/16" Clear 48" Lengths
5700188RD0048 CPA100-0187RD48IN 3/16" Red 48" Lengths
5700188WH0048 CPA100-0187WH48IN 3/16" White 48" Lengths
5700250BK0048 CPA100-0250BK48IN 1/4" Black 48" Lengths
5700250BK00R4 CPA100-0250BK500FT 1/4" Black 500' Spools
5700250CL0048 CPA100-0250BK48IN 1/4" Clear 48" Lengths
5700250RD0048 CPA100-0250RD48IN 1/4" Red 48" Lengths
5700250WH0048 CPA100-0250WH48IN 1/4" White 48" Lengths
5700312BK0048 CPA100-0312BK48IN 5/16" Black 48" Lengths
5700312BK00R4 CPA100-0312BK500FT 5/16" Black 500' Spools
5700312CL0048 CPA100-0312CL48IN 5/16" Clear 48" Lengths
5700375BK0048 CPA100-0375BK48IN 3/8" Black 48" Lengths
5700375BK00R3 CPA100-0375BK200FT 3/8" Black 200' Spools
5700375CL0048 CPA100-0375CL48IN 3/8" Clear 48" Lengths
5700375RD0048 CPA100-0375RD48IN 3/8" Red 48" Lengths
5700375WH0048 CPA100-0375WH48IN 3/8" White 48" Lengths
5700500BK0048 CPA100-0500BK48IN 1/2" Black 48" Lengths
5700500BK00R3 CPA100-0500BK200FT 1/2" Black 200' Spools
5700500CL0048 CPA100-0500CL48IN 1/2" Clear 48" Lengths
5700500RD0048 CPA100-0500RD48IN 1/2" Red 48" Lengths
5700500WH0048 CPA100-0500WH48IN 1/2" White 48" Lengths
5700750BK0048 CPA100-0750BK48IN 3/4" Black 48" Lengths
5700750BK00R2 CPA100-0750BK100FT 3/4" Black 100' Spools
5700750CL0048 CPA100-0750CL48IN 3/4" Clear 48" Lengths
5700750RD0048 CPA100-0750RD48IN 3/4" Red 48" Lengths
5700750WH0048 CPA100-0750WH48IN 3/4" White 48" Lengths
5701000BK0048 CPA100-1000BK48IN 1" Black 48" Lengths
5701000BK00R2 CPA100-1000BK100FT 1" Black 100' Spools
5701000CL0048 CPA100-1000CL48IN 1" Clear 48" Lengths
5701000RD0048 CPA100-1000RD48in 1" Red 48" Lengths
5701000WH0048 CPA100-1000WH48IN 1" White 48" Lengths
5701250BK0048 CPA100-1250BK48IN 1 1/4" Black 48" Lengths
5701500BK0048 CPA100-1500BK48IN 1 1/2" Black 48" Lengths
5701500CL0048 CPA100-1500CL48IN 1 1/2" Clear 48" Lengths
More Information
SKU CANUSA_CPA100
Manufacturer DSG-Canusa
Manufacturer Part Number CPA-100
Size (Expanded ID) No
Color No
Packaging No
Adhesive Lining Adhesive Lined
Shrink Ratio No
Material Polyolefin
