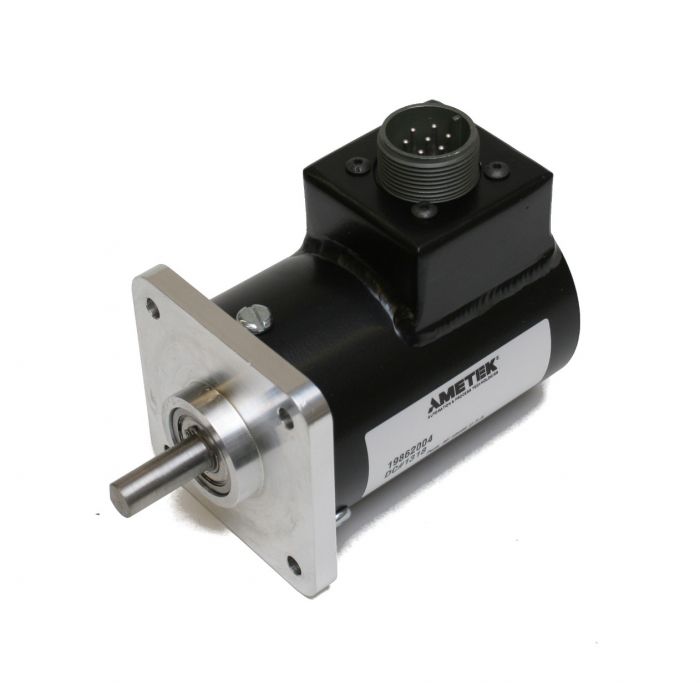

Ametek Gemco 1986-2004 Rotary Resolver
3/8" Shaft Rotary Position sensor providing absolute shaft position on a 2.06" square mount.
The Ametek Gemco 1986 Rotary Sensing Resolvers provide rugged, accurate rotary positioning of industrial processes including in harsh environments. The internal brushless resolvers include an AC reference winding and sin and cos windings placed at 90 degrees, thus providing two different output voltages which represent the absolute position of the shaft. Resolvers are the standard rotary position method for multiple industrial applications.
The brushless resolver uses a rotary transformer to couple the rotor power. The three separate windings take an AC excitor voltage and use the sin and cos windings to provide different output voltages whose ratios provide an absolute shaft position.
The Resolvers hold up better in harsh environments than other rotary position sensors.They are absolute so the exact position data will be commuinicated when power is applied. Resolvers can signal over a long cable run.
Resolvers are the standard position sensing method for packaging, metal manufacturing, stamping, auto, tire and rubber, paper manufacturing, and mining.
- 2.06 Square Flange Mount with 3/8" Input Shaft
- Standard Output - Compatible with all Gemco Electronic Modules
- Single Turn Resolver - No Gear Reducer
- Side Mount Connector
- No Special Options
- NEMA 4 Enclosure
|Shipping Weight (LBS)||3.000000|
|Manufacturer Part Number||1986-2004|
|Country of Manufacture||United States|
