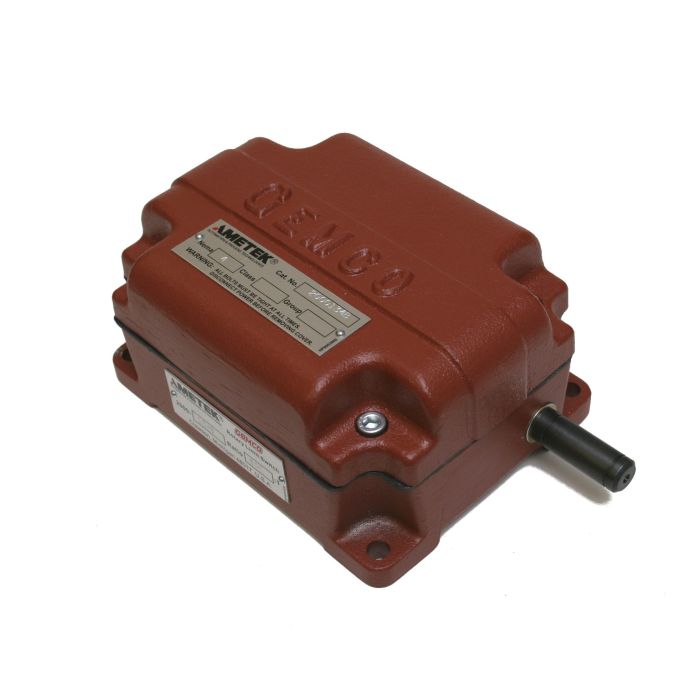

Ametek Gemco Series 2000 Heavy Duty Rotary Limit Switch (Special Order)

As low as $919.00

Gemco's 2000 Series Heavy Duty Rotary Limit Switches are ruggedly built to control the limits of a rotary motion or gear driven linear motion. The Heavy Duty limit switch is often used on installations such as mechanical press ram adjustments, press extractors, and shuttles requiring dependable trouble-free performance.

Gemco's 2000 Series Heavy Duty Rotary Limit Switches are ruggedly built to control the limits of a rotary motion or gear driven linear motion. The Heavy Duty limit switch is often used on installations such as mechanical press ram adjustments, press extractors, and shuttles requiring dependable trouble-free performance.These applications require a limit switch withstanding rapid starting and stopping, shock, vibration and still precisely control the end or intermediate limits.  These GEMCO Heavy Duty Rotary Limit Switches meet these demands and the high reliability required, exceeding other products on the market.

Gemco Rotary Limit Switches are highly dependable.
The input shaft is either 1/2" or 1 1/4", depending on the reduction ratios selected. The shaft includes a Woodruff key and drives a bronze gear which rotates the cam block. The cam block houses independently adjustable cams actuating the precision type snap action switches. The switches can be provided in two, three, or four circuit configurations, provided with single throw or double throw switches for versatility of control circuits.  No minimum speed is specified because snap action contacts are used. Maximum rated speed of the input shaft is 1800 RPM and can be rotated clockwise or counterclockwise. The NEMA 1&12 enclosures are a special fiber glass material which is highly resistant to acids,alcohols,hydrocarbons and heat. Cast iron or bronze enclosures are available.

Featuring:

  • All Metal Gearing
  • S.P.D.T or DPDT Industrial Duty Switches
  • NEMA 1 & 12 Enclosure
  • Gear Ratios from 5:1 to 3000:1
  • Positive, Independent Cam Settings
  • Large Cover Openings for Ease of Wiring
  • U.L. & CSA recognized switches
                                                                                                              NEMA 12  Enclosure


Reduction

Ratios

Two Circuit

SPDT

Two Circuit

DPDT

Three Circuit

SPDT

Four Circuit

SPDT

5:1 2000-2000 2000-2006 2000-2012 2000-2018
7.5:1 2000-2001 2000-20007 2000-2013 2000-2019
10:1 2000-2002 2000-2008 2000-2014 2000-2020
15:1 2000-2003 2000-2009 2000-2015 2000-2021
20:1 2000-2004 2000-2010 2000-2016 2000-2022
30:1 2000-2005 2000-2011 2000-2017 2000-2023
125:1 2000-2024 2000-2039 2000-2054 2000-2069
156.25:1 2000-2025 2000-2040 2000-2055 2000-2070
187.5:1 2000-2026 2000-2041 2000-2056 2000-2071
250:1 2000-2027 2000-2042 2000-2057 2000-2072
312.5:1 2000-2028 2000-2043 2000-2058 2000-2073
375:1 2000-2029 2000-2044 2000-2059 2000-2074
500:1 2000-2030 2000-2045 2000-2060 2000-2075
625:1 2000-2031 2000-2046 2000-2061 2000-2076
750:1 2000-2032 2000-2047 2000-2062 2000-2077
1000:1 2000-2033 2000-2048 2000-2063 2000-2078
1250:1 2000-2034 2000-2049 2000-2064 2000-2079
1500:1 2000-2035 2000-2050 2000-2065 2000-2080
2000:1 2000-2036 2000-2051 2000-2066 2000-2081
2500:1 2000-2037 2000-2052 2000-2067 2000-2082
3000:1 2000-2038 2000-2053 2000-2068 2000-2083


Usually ships 20 - 25 working days after receipt of order

Gemco rotary limit switches are built to order, and are not returnable. If you have any questions about using this product in your application, please do not hesitate to call or email us.

For more information, please check the Gemco rotary limit switch brochure

More Information
SKU GEMCO-2000HD
Manufacturer Ametek
Manufacturer Part Number 2000
NEMA Rating 12
Switch Contact Configuration No
Number of Cams No
Gear Ratio No
