Kobold NAB Float Switch
Kobold NAB series industrual quality tilt float switch

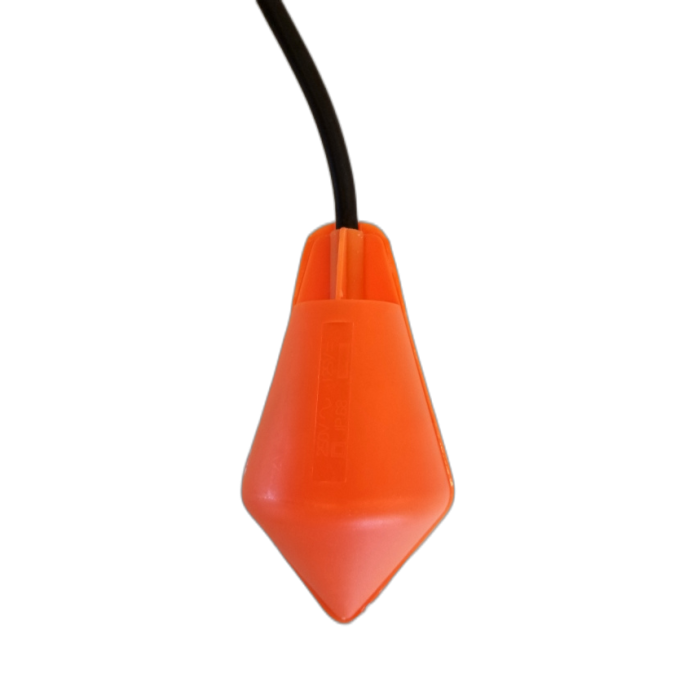

Kobold NAB series industrial quality tilt type float switch. This mercury-free mechanical float switch provide a high current SPDT contact capable of directly controlling some small pumps. It can be used for high level, low level, pump-up, and pump-down applications, making it ideal for operating pumps, valves, alarms, and similar equipment. A ballast weight is sold separately for applications where tethering the cable is not possible.
Float Material: Polypropylene.
Cable: Neoprene 3 conductor cable. (not recommended for certain highly corrosive or solvent based applications)
Contact type: SPDT mechanical switch, connectable as N.O. or N.C.
Contact rating: 20A resistive load, 8A inductive load, Max 250 VAC
Switching angle: Approx. +55° from horizontal to Activate, -55° to Deactivate
Max. pressure: 50 PSIG Uncoated, 58 PSIG Hypalon coated
Max temperature: 185 °F (85 °C)
Ballast weight: Sold separately
Catalog Numbering
| Model | Description |
| NAB-W03 | Conical Float, 10 ft. Neoprene Cable |
| NAB-W10 | Conical Float, 30 ft. Neoprene Cable |
| SKU | KOBOLD-NAB |
|---|---|
| Shipping Weight (LBS) | 2.500000 |
| Contact Arrangement | SPDT (Pump-up/down) |
| Float Coating | Uncoated |
| Manufacturer | Kobold |
| Manufacturer Part Number | NAB |
| Country of Manufacture | France |
