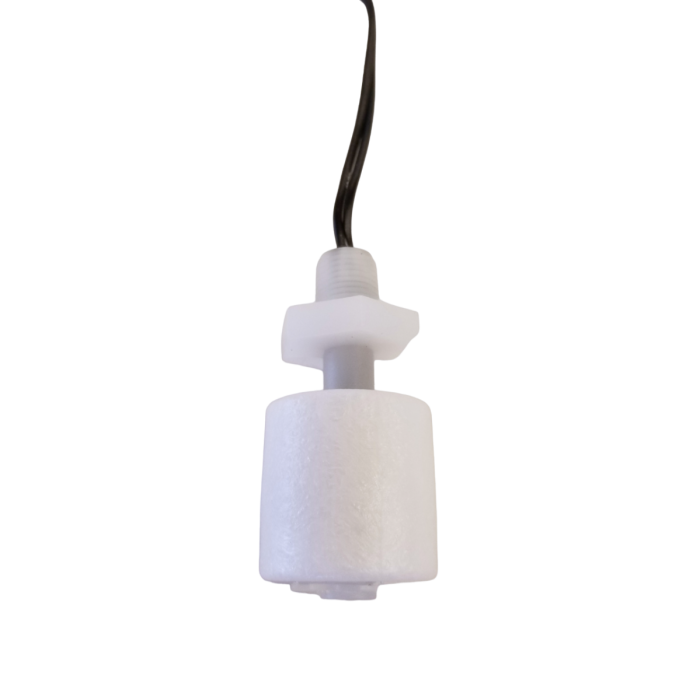

Kobold NCP Top Mount Polypropylene Float Switch

Kobold NCP series polypropylene top-mount float switch. This switch uses a hermetically sealed reed switch actuated by a magnet in the float. The contact can be changed from normally open to normally closed by reversing the direction that the float is installed on the stem. The float switch can be installed in the top or bottom of a tank, and will operate with up to a 30 degree tilt from vertical.

Stem Material: Polypropylene.
Float Material: Foamed Polypropylene.
Mounting: 1/8" NPT
Wire Lead: 22 AWG, 24" length
Contact type: Single Pole Single Throw (SPST). Field convertible from N.O. to N.C.
Contact rating: 20 VA, 240 VAC/VDC, 0.7A AC, 0.4A DC
Max. pressure: 100 PSIG
Operating temperature: -40°F (-40 °C) to 225 °F (107 °C)
Minimum S.G. of Media: 0.81
