Kobold NCS Small Top Mount SS Float Switch

In stock
Only 5 left

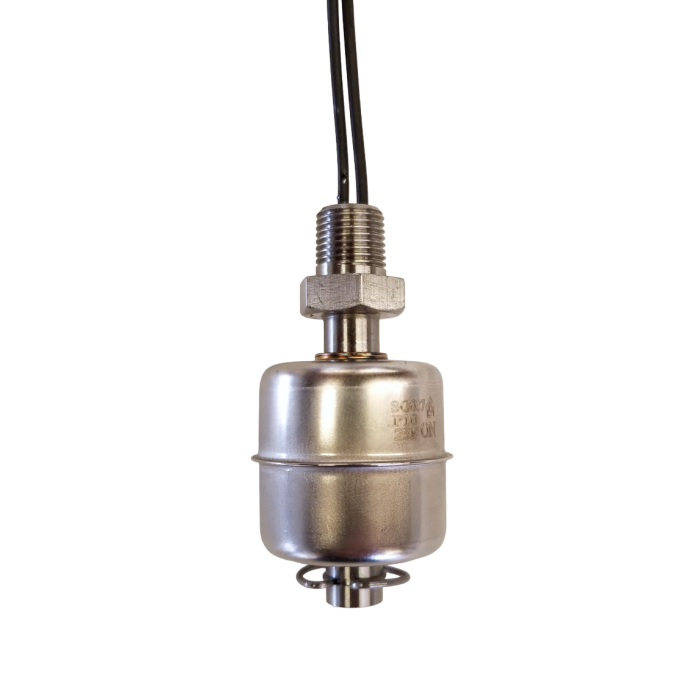

Kobold NCS small top mount 316 stainless steel float switch

Kobold NCS series 316 stainless steel top-mount float switch with small float. This switch uses a hermetically sealed reed switch actuated by a magnet in the float. The contact can be changed from normally open to normally closed by reversing the direction that the float is installed on the stem. The float switch can be installed in the top or bottom of a tank, and will operate with up to a 30 degree tilt from vertical.


Stem Material: 316 Stainless Steel.
Float Material: 316 Stainless Steel.
Mounting: 1/8" NPT
Wire Lead: 22 AWG, 24" length
Contact type: Single Pole Single Throw (SPST). Field convertible from N.O. to N.C.
Contact rating: 20 VA, 240 VAC/VDC, 0.7A AC, 0.4A DC
Max. pressure: 142 PSIG
Operating temperature: -4 °F to 248 °F
Minimum S.G. of Media: 0.77

More Information
Shipping Weight (LBS) 0.500000
Contact Arrangement SPST field convertible (Pump-up/down)
Float Coating Uncoated
Manufacturer Kobold
Manufacturer Part Number NCS-1074
