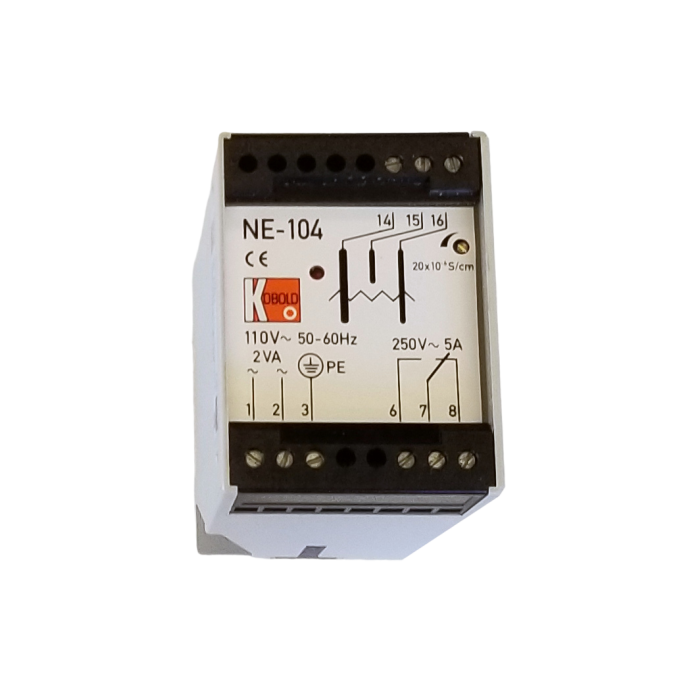

Kobold NE-104 Liquid Level Control Relay, Single Channel

In stock
Only %1 left

Liquid level control relay with solid state sensing circuit, single channel.

The Kobold NE-104 is a versatile level sensing relay for use with conductive electrodes. This is the single channel version. It can be used for pump-up, pump-down, high level sensing, or low level sensing. The solid state sensing circuit is adjustable from 0-50 kΩ sensitivity, ideal for most water and conductive liquids.

Power Supply: 230 VAC, 110 VAC, 24 VAC ±15%, 50-60 Hz
Power Consumption: 2 VA
Max. Electrode Voltage: 10 VAC
Max. Electrode Current: 0.5 mA
Sensitivity (Adjustable): 0-50 kΩ
Response Time: Approx. 1 Second
Ambient Op. Temp: -4...140 °F
Output: 1 SPDT Relay, Max. 250 VAC @ 5 A, 600 VA
Installation: Rail Mountability for DIN 46121 Rail

More Information
Shipping Weight (LBS) 1.000000
Manufacturer Kobold
Manufacturer Part Number NE-104
