Kobold NEC Heavy-Duty Float Switch

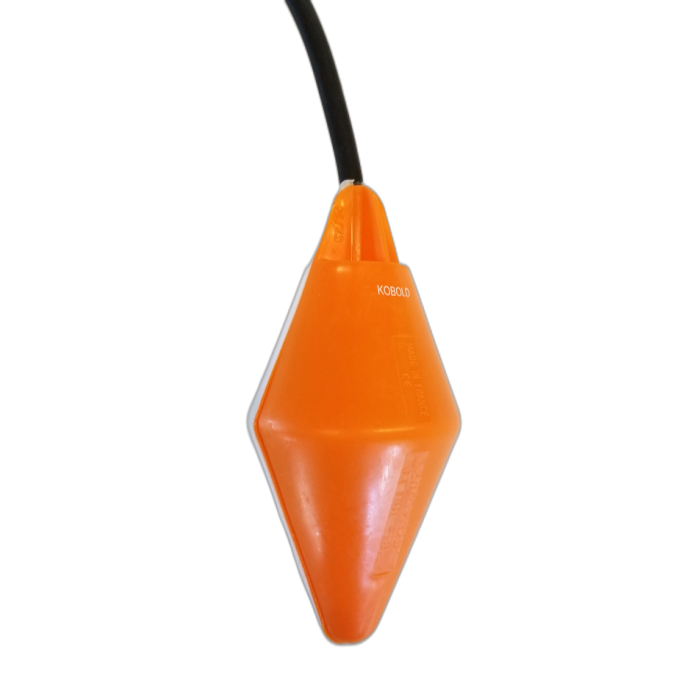

Kobold NEC series mechanical tilt type float switch.
Kobold NEC series heavy-duty float switches provide liquid level control for industrial and commercial applications. They are ideal for operating pumps, valves, relays, contactors, and alarms. The polypropylene float is resistant to many chemical solutions, and the optional Hypalon can be supplied for superior chemical resistance. These floats have a mercury-free mechanical Single Pole Double Throw (SPDT) contact and can be used for high level, low level, pump-up, and pump-down applications. The multi-chamber float design makes these floats almost impossible to sink. A ballast weight is included for easy installation in open tanks.
Float Material: Polypropylene. Hypalon coating optional.
Cable: CPE clad 3 conductor cable.
Contact type: SPDT mechanical switch, connectable as N.O. or N.C.
Contact rating: 16A resistive load, 6A inductive load, Max 250 VAC
Switching angle: Approx. +25° from horizontal to Activate, -25° to Deactivate
Max. pressure: 50 PSIG Uncoated, 58 PSIG Hypalon coated
Max temperature: 185 °F (85 °C) Uncoated, 194 °F (90 °C) Hypalon coated
Ballast weight: Included, loaded resin material.
|NEC-930||Double Cone Float, 16' CPE Cable|
|NEC-930N10||Double Cone Float, 30' CPE Cable|
|NEC-HY930||Hypalon® Coated Double Cone Float, 16' CPE Cable|
|NEC-HY930N10||Hypalon® Coated Double Cone Float, 30' CPE Cable|
|Shipping Weight (LBS)||3.500000|
|Manufacturer Part Number||NEC|
|Country of Manufacture||France|
