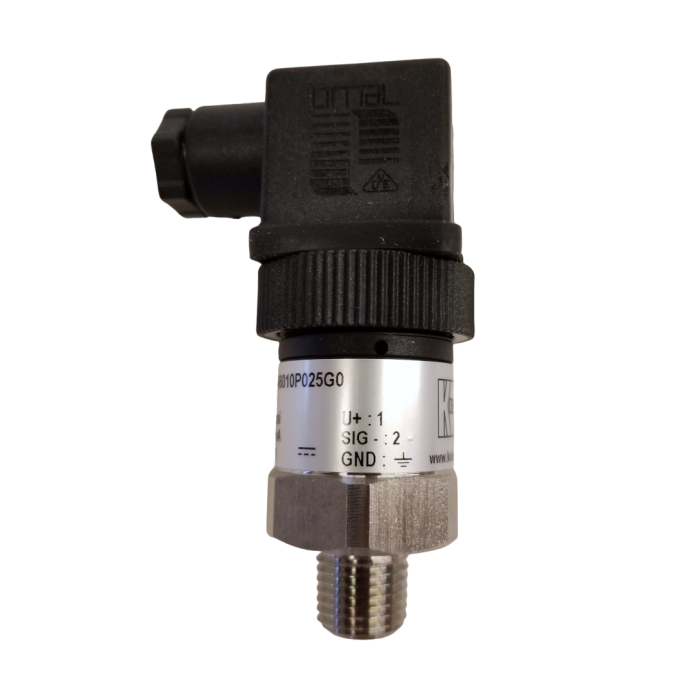

Kobold SEN-9601 Pressure Transducer

The Kobold SEN-9601 is an economical pressure transmitter with a ceramic sensing element. It is ideal for general industrial applications including gas stocking, pneumatics, refrigeration, and welding. It is commonly used for pressure sensing of air, industrial and technical gases, water, and oil.

Ranges
    Standard: -30...0" HG to 0...6000 PSIG
    Compound: -30" Hg/15 PSIG to -30" HG/150 PSIG

Accuracy: ≤ ± 0.5% of Full Scale1) for all Ranges, Except Range "P025" (at ≤ ± 0.75% of Full Scale1))
Linearity (BFSL): ≤ ± 0.25 % of Full Scale for all Ranges, Except Range "P025" (at ≤ ± 0.5% of Full Scale)
Repeatability: ≤ 0.1 % of the Full Scale, According to EN 61298-2

Output Signal
    Deviation of Zero: ≤ ± 0.5 % of Span, Typical; ≤ ± 0.75 % of Span, Max.
    Thermal Drift: Between 32 °F and 176 °F; 1 % of Span, 2.5 % of Span, Max.3)
    Long Term Drift: ≤ 0.1% of Span, According to EN 61298-2

Temperature
    Process Media: -13...212 °F
    Ambient: -13...185 °F
    Storage: -22...185 °F

Output Signals: 4... 20 mA, 0...5 VDC, 0...10 VDC, 1... 5 VDC, 0.5... 4.5 Ratiometric VDC
Response Time: <4 ms
Emission/Immunity: According to EN 61326, (Group 1- Class B; Industrial Applications)
Process Connection: 316L, Hole ø 2.5 mm
Sensor: Ceramic in Al2O3
Case: 316L, Vented up to 200 PSIG
Gasket (Sensor): FKM
Electric Connection: DIN 43 650A w/Cable Gland (Standard)
    DIN 43 650A w/1/2" Conduit (Optional)

Protection Degree: IP 65 According to IEC 529 / EN 605292)
Weight: 0.27 lb
