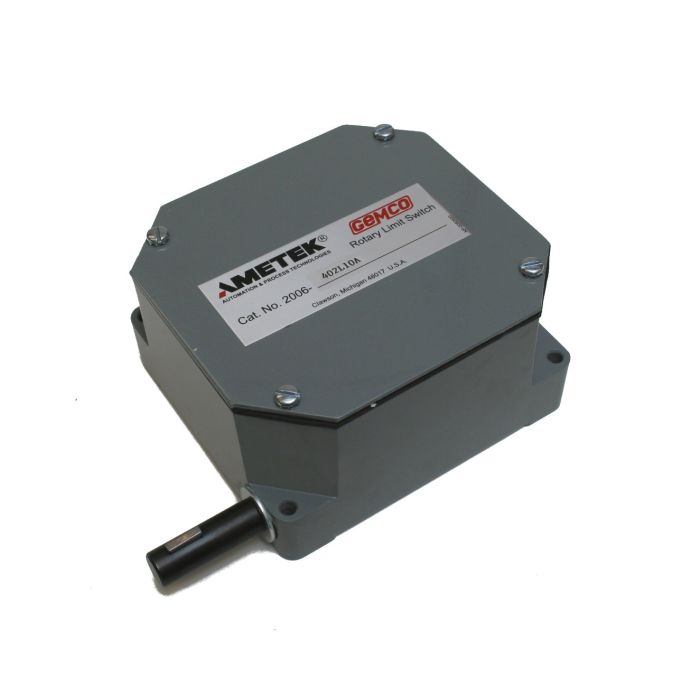

Ametek Gemco 2006 Type K 2 Circuit Rotary Limit Switch (In Stock)

As low as $489.00
In stock
Only %1 left
SKU
GEMCO-2006402

Gemco type K rotary limit switch, two circuits with SPDT or DPDT snap action switches, NEMA 4 enclosure. Features all metal gearing with ratios from 5:1 to 1080:1.

2006 type K Series Rotary Limit Switches control the limits of a linear or rotary motion. The limit switch is often used on hoists, packaging and material handling equipment, conveyors, door controls, and rotary operators where motion is converted to shaft rotation.The limit switch is often used to protect against accidental damage to equipment.

Available in NEMA Type 4  enclosures. These incorporate a synthetic gasket which prevents exposure to oil, water and dust. Switches may be mounted without internal interference.

Gemco Rotary Limit Switches are highly dependable.

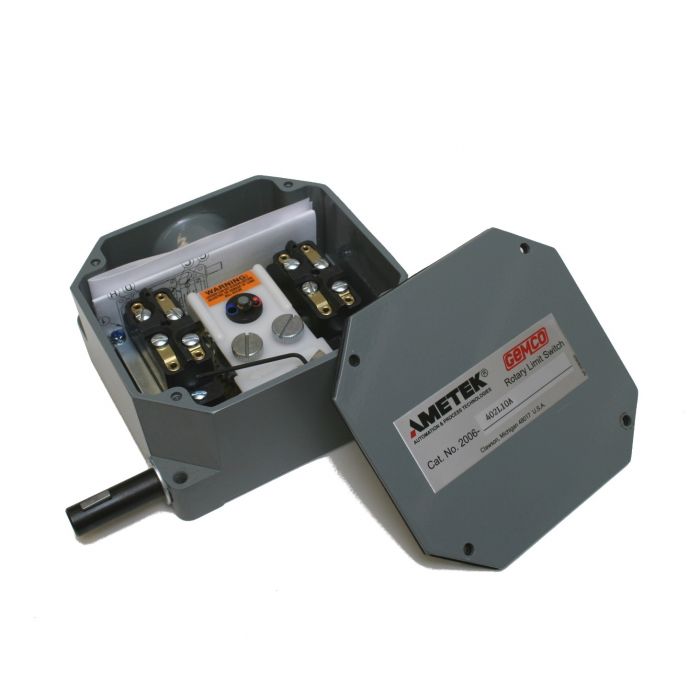

The 1/2” input shaft drives a bronze gear which rotates the cam block. The cam block houses independently adjustable cams that actuate the precision type snap action switches. Each switch can be provided with two circuits.  No minimum speed is specified because snap action contacts are used. Maximum rated speed of the worm shaft is 1000 RPM and can be rotated clockwise or counterclockwise.

Featuring:

  • All Metal Gearing
  • S.P.D.T. or DPDT Industrial Duty Switches
  • NEMA 4 Enclosures
  • Gear Ratios from 5:1 to 1080:1
  • Rugged Duty Die Cast Enclosures
  • Positive, Independent Cam Settings
  • Large Cover Openings for Ease of Wiring
  • GEMCO rugged duty precision snap action switches
  • U.L. & CSA recognized switches



Input Shaft Rev. Cam Block Rev.

Shaft Extension

Switch Type

Gemco

Part #

Input Shaft Turns

Max. Setting

Input Shaft Turns

To Reset

5 1 Left SPDT 2006-402-L-5-A 4 1/16
10 1 Left SPDT 2006-402-L-10-A 8-1/2 1/8
20 1 Left SPDT 2006-402-L-20-A 17 1/4
30 1 Left SPDT 2006-402-L-30-A 26 3/8
40 1 Left SPDT 2006-402-L-40-A 35 1/2
60 1 Left SPDT 2006-402-L-60-A 53 3/4
80 1 Left SPDT 2006-402-L-80-A 72 1
120 1 Left SPDT 2006-402-L-120-A 108 1-1/2
270 1 Left SPDT 2006-402-L-270-A
357 1 Left SPDT 2006-402-L-357-A
1080 1 Left SPDT 2006-402-L-1080-A
Input Shaft Rev. Cam Block Rev.

Shaft Extension

Switch Type

Gemco

Part #

Input Shaft Turns

Max. Setting

Input Shaft Turns

To Reset

5 1 Right SPDT 2006-402-R-5-A 4 1/16
10 1 Right SPDT 2006-402-R-10-A 8-1/2 1/8
20 1 Right SPDT 2006-402-R-20-A 17 1/4
30 1 Right SPDT 2006-402-R-30-A 26 3/8
40 1 Right SPDT 2006-402-R-40-A 35 1/2
60 1 Right SPDT 2006-402-R-60-A 53 3/4
80 1 Right SPDT 2006-402-R-80-A 72 1
120 1 Right SPDT 2006-402-R-120-A 108 1-1/2
270 1 Right SPDT 2006-402-R-270-A
357 1 Right SPDT 2006-402-R-357-A
1080 1 Right SPDT 2006-402-R-1080-A
Input Shaft Rev. Cam Block Rev.

Shaft Extension

Switch Type

Gemco

Part #

Input Shaft Turns

Max. Setting

Input Shaft Turns

To Reset

5 1 Left 1-DPDT, 1-SPDT 2006-402-L-5-B 4 1/16
10 1 Left 1-DPDT, 1-SPDT 2006-402-L-10-B 8-1/2 1/8
20 1 Left 1-DPDT, 1-SPDT 2006-402-L-20-B 17 1/4
30 1 Left 1-DPDT, 1-SPDT 2006-402-L-30-B 26 3/8
40 1 Left 1-DPDT, 1-SPDT 2006-402-L-40-B 35 1/2
60 1 Left 1-DPDT, 1-SPDT 2006-402-L-60-B 53 3/4
80 1 Left 1-DPDT, 1-SPDT 2006-402-L-80-B 72 1
120 1 Left 1-DPDT, 1-SPDT 2006-402-L-120-B 108 1-1/2
270 1 Left 1-DPDT, 1-SPDT 2006-402-L-270-B
357 1 Left 1-DPDT, 1-SPDT 2006-402-L-357-B
1080 1 Left 1-DPDT, 1-SPDT 2006-402-L-1080-B
Input Shaft Rev. Cam Block Rev.

Shaft Extension

Switch Type

Gemco

Part #

Input Shaft Turns

Max. Setting

Input Shaft Turns

To Reset

5 1 Right 1-DPDT, 1-SPDT 2006-402-R-5-B 4 1/16
10 1 Right 1-DPDT, 1-SPDT 2006-402-R-10-B 8-1/2 1/8
20 1 Right 1-DPDT, 1-SPDT 2006-402-R-20-B 17 1/4
30 1 Right 1-DPDT, 1-SPDT 2006-402-R-30-B 26 3/8
40 1 Right 1-DPDT, 1-SPDT 2006-402-R-40-B 35 1/2
60 1 Right 1-DPDT, 1-SPDT 2006-402-R-60-B 53 3/4
80 1 Right 1-DPDT, 1-SPDT 2006-402-R-80-B 72 1
120 1 Right 1-DPDT, 1-SPDT 2006-402-R-120-B 108 1-1/2
270 1 Right 1-DPDT, 1-SPDT 2006-402-R-270-B
357 1 Right 1-DPDT, 1-SPDT 2006-402-R-357-B
1080 1 Right 1-DPDT, 1-SPDT 2006-402-R-1080-B
Input Shaft Rev. Cam Block Rev.

Shaft Extension

Switch Type

Gemco

Part #

Input Shaft Turns

Max. Setting

Input Shaft Turns

To Reset

5 1 Left 2-DPDT 2006-402-L-5-C 4 1/16
10 1 Left 2-DPDT 2006-402-L-10-C 8-1/2 1/8
20 1 Left 2-DPDT 2006-402-L-20-C 17 1/4
30 1 Left 2-DPDT 2006-402-L-30-C 26 3/8
40 1 Left 2-DPDT 2006-402-L-40-C 35 1/2
60 1 Left 2-DPDT 2006-402-L-60-C 53 3/4
80 1 Left 2-DPDT 2006-402-L-80-C 72 1
120 1 Left 2-DPDT 2006-402-L-120-C 108 1-1/2
270 1 Left 2-DPDT 2006-402-L-270-C
357 1 Left 2-DPDT 2006-402-L-357-C
1080 1 Left 2-DPDT 2006-402-L-1080-C
Input Shaft Rev. Cam Block Rev.

Shaft Extension

Switch Type

Gemco

Part #

Input Shaft Turns

Max. Setting

Input Shaft Turns

To Reset

5 1 Right 2-DPDT 2006-402-R-5-C 4 1/16
10 1 Right 2-DPDT 2006-402-R-10-C 8-1/2 1/8
20 1 Right 2-DPDT 2006-402-R-20-C 17 1/4
30 1 Right 2-DPDT 2006-402-R-30-C 26 3/8
40 1 Right 2-DPDT 2006-402-R-40-C 35 1/2
60 1 Right 2-DPDT 2006-402-R-60-C 53 3/4
80 1 Right 2-DPDT 2006-402-R-80-C 72 1
120 1 Right 2-DPDT 2006-402-R-120-C 108 1-1/2
270 1 Right 2-DPDT 2006-402-R-270-C
357 1 Right 2-DPDT 2006-402-R-357-C
1080 1 Right 2-DPDT 2006-402-R-1080-C
Input Shaft Rev. Cam Block Rev.

Shaft Extension

Switch Type

Gemco

Part #

Input Shaft Turns

Max. Setting

Input Shaft Turns

To Reset

5 1 Left 1950-1408(Quick Reset) 2006-402-L-5-R 4 1/16
10 1 Left 1950-1408(Quick Reset) 2006-402-L-10-R 8-1/2 1/8
20 1 Left 1950-1408(Quick Reset) 2006-402-L-20-R 17 1/4
30 1 Left 1950-1408(Quick Reset) 2006-402-L-30-R 26 3/8
40 1 Left 1950-1408(Quick Reset) 2006-402-L-40-R 35 1/2
60 1 Left 1950-1408(Quick Reset) 2006-402-L-60-R 53 3/4
80 1 Left 1950-1408(Quick Reset) 2006-402-L-80-R 72 1
120 1 Left 1950-1408(Quick Reset) 2006-402-L-120-R 108 1-1/2
270 1 Left 1950-1408(Quick Reset) 2006-402-L-270-R
357 1 Left 1950-1408(Quick Reset) 2006-402-L-357-R
1080 1 Left 1950-1408(Quick Reset) 2006-402-L-1080-R
Input Shaft Rev. Cam Block Rev.

Shaft Extension

Switch Type

Gemco

Part #

Input Shaft Turns

Max. Setting

Input Shaft Turns

To Reset

5 1 Right 1950-1408(Quick Reset) 2006-402-R-5-R 4 1/16
10 1 Right 1950-1408(Quick Reset) 2006-402-R-10-R 8-1/2 1/8
20 1 Right 1950-1408(Quick Reset) 2006-402-R-20-R 17 1/4
30 1 Right 1950-1408(Quick Reset) 2006-402-R-30-R 26 3/8
40 1 Right 1950-1408(Quick Reset) 2006-402-R-40-R 35 1/2
60 1 Right 11950-1408(Quick Reset) 2006-402-R-60-R 53 3/4
80 1 Right 1950-1408(Quick Reset) 2006-402-R-80-R 72 1
120 1 Right 1950-1408(Quick Reset) 2006-402-R-120-R 108 1-1/2
270 1 Right 1950-1408(Quick Reset) 2006-402-R-270-R
357 1 Right 1950-1408(Quick Reset) 2006-402-R-357-R
1080 1 Right 1950-1408(Quick Reset) 2006-402-R-1080-R

Cross Reference 2

Circuit Rotary Switch

Cutler Hammer

Part No.

GEMCO

Part No.

10316H-155-1 2006-402-L-120-A
10316H-156-1 2006-402-L-60-A
10316H-157-1 2006-402-L-40-A
10316H-167-1 2006-402-L-357-A
10316H-169-1 2006-402-L-1080-A
10316H-179-1 2006-402-R-120-A
10316H-180-1 2006-402-R-60-A
10316H-181-1 2006-402-R-40-A
10316H-1016-1 2006-402-L-10-A
10316H-1017-1 2006-402-L-20-A
10316H-1018-1 2006-402-R-10-A
10316H-1019-1 2006-402-R-20-A
10316H-4556-1 2006-402-L-5-A
10316H-4557-1 2006-402-L-30-A
10316H-4559-1 2006-402-L-80-A
10316H-4560-1 2006-402-R-5-A
10316H-4561-1 2006-402-R-30-A
10316H-4563-1 2006-402-R-80-A
10316H-4591-1 2006-402-R-357-A
10316H-4595-1 2006-402-R-1080-A
10316H-4599-1 2006-402-L-270-A
10316H-4606-1 2006-402-R-270-A
More Information
SKU GEMCO-2006402
Shipping Weight (LBS) 5.000000
Manufacturer Ametek
Manufacturer Part Number 2006-402
Country of Manufacture United States
NEMA Rating 4
Number of Cams 2
