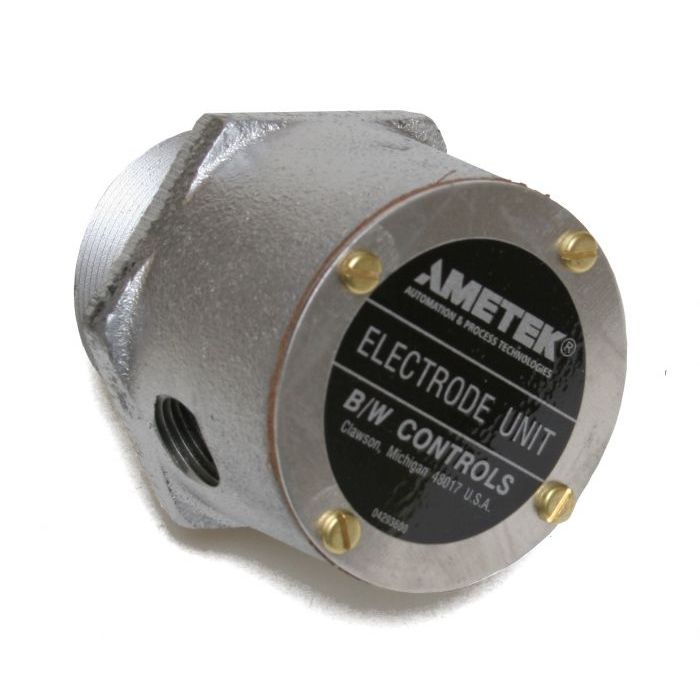

Ametek B/W Controls 6012 Series Electrode Holder

As low as $114.95 Regular Price $121.00
In stock
SKU
BW-6012

B/W pressure-tight electrode holder for applications requiring a positive, leakproof assembly

  • Holds 1 to 7 electrode plugs, depending on selection. (sold separately)
  • Cast iron or Stainless Steel body
  • Male pipe thread for mounting

B/W pressure-tight electrode holders are designed especially for applications which require a positive, leakproof assembly. Such installations include boiler feed and condensate return systems, hydroneumatic tanks, and various types of chemical processing equipment. These holders are typically used with solid rod electrodes, although wire suspension electrodes can be attached with B/W 6013-CSS connectors (sold separately). This holder has a male pipe thread for mounting, and accepts a specified number of electrode plugs. Electrodes are sold separately for maximum flexibility.

  • Holds 1-7 electrode plugs, depending on selection. (sold separately)
  • Cast iron or Stainless Steel body
  • Male pipe thread for mounting (Diameter depends on number of electrode plugs held).

Electrode Plug Specifications:

  • EP1: Furnished as standard equipment. Suitable for most applications Up to 250 psi at 212°F(100°C), and up to 700°F (371°C) at 100 psi.
  • EP2: Recommended for saturated steam applications. Suitable for up to 250 psi at 400°F (204°C), and up to 550°F (288°C) at 200 psi.
  • EP3: Recommended for low pressure applications that are subject to some vibration or shock. Also for long electrode rods.
  • EP4: used only for non-pressure applications and only for wire suspension electrodes where the standard plug and wire connector arrangement is not suitable.
Compatible Electrode Plugs:
Catalog NumberOld Part NumberMounting ThreadConstruction MaterialsPressure/Temperature Ratings
6012-EP1 04-126400 3/8-18 Dryseal (PTD) SAE Short Pipe Thread Shell-303SS Insulator--Ceramic Seal--Glass & Copper 2000 psi Up to 200°F (93°C); 700°F (371°C) Up to 100 psi
6012-EP2 04-141300 3/8-18 Dryseal (PTD) SAE Short Pipe Thread Shell-303SS Insulator--Ceramic Seal--Glass & Teflon® 2000 psi Up to 200°F (93°C); 550°F (288°C) Up to 200 psi; Saturated Steam up to 450 psi
6012-EP3 04-149600 3/8-18 Dryseal (PTD) SAE Short Pipe Thread Shell--303SS Insulator--Teflon® Seal--Teflon® 500 psi Up to 270°F (132°C); 300°F (149°C) Up to 250 psi; Saturated Steam up to 125 psi
6012-EP4 12-066400 3/8-18 NPT Pipe Thread Shell--Aluminum Cord Grip with Neoprene Packing For Nonpressure Use; Up to 190°F (88°C); Only for wire suspension electrodes)

For more infomation, please see the Ametek B/W Controls catalog.
