Straight Ejector Pin, H-13 Nitrided

SKU
ROYAL-RX
Starting at $2.11
In stock
Only %1 left

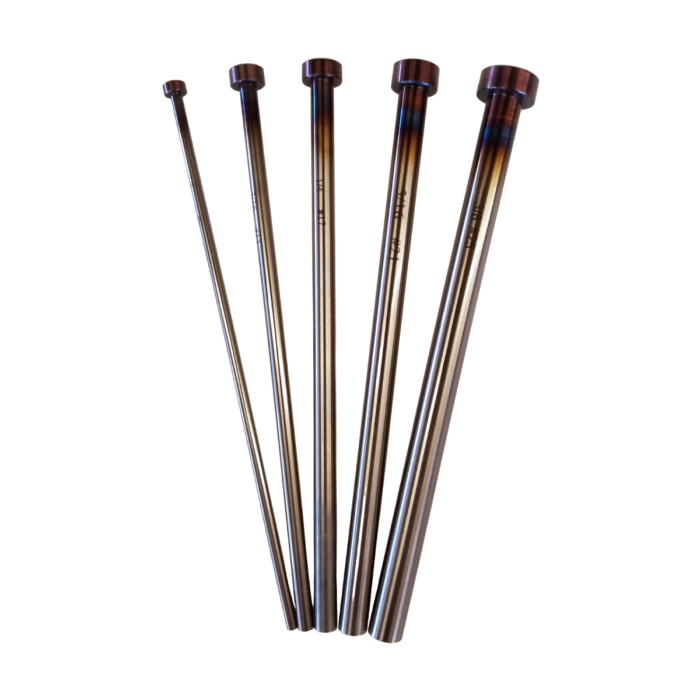

Straight ejector pin, H-13 Hotwork with nitrided surface.

  • In-stock options ship same day when ordered by 3:00 PM Pacific.
  • Questions about this part? 800-726-1884 or email sales

Straight ejector pin. Made from high quality H-13 hotwork die steel with a nitrided surface finish.

Royal RX Knightride or equivalent.

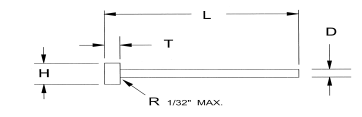

Dimensions

Pin Diameter (D) Head Dia. (H) Head Thick. (T) Catalog Number
Nominal Decimal
1/8" 0.1094 1/4" 1/8" RX-9
3/16" 0.1875 3/8" 3/16" RX-13
1/4" 0.2500 7/16" 3/16" RX-17
5/16" 0.3125 1/2" 1/4" RX-21
3/8" 0.3750 5/8" 1/4" RX-25
More Information
SKU ROYAL-RX
Shipping Weight (LBS) 0.500000
Manufacturer Royal
Manufacturer Part Number RX-KNIGHTRIDE
