How-To Setup a B/W Controls Conductive Level Control System

Common Applications

Typically there are three electrodes in a tank, a high level, a low level, and a ground. However, a conductive tank itself may be used for a ground instead, requiring only two electrodes for this configuration.

  • A pump-down configuration will wait until the water level reaches the top, then pump it down until it reaches the middle electrode.
  • A pump-up configuration will begin to pump up when the water level drops below the middle electrode, then shut off when it reaches the top electrode.

Types of B/W Controls Relays

  • 1500 Series Induction Relay
    • Contacts rated for up to 1HP
    • Rugged and reliable
    • Available in many configurations, and configurable
  • 5200 Series Solid State Relay
    • Low and High Sensitivity Sensitivity Variations
    • Can be used for long-distance sensing applications, where the electrodes are far away
    • Capable of much higher sensitivity applications
    • Sensitivity resistance is set with a resistor, or with an optional potentiometer
  • 5600 Series Solid State Relay
    • Fixed sensitivity
    • Low cost and low energy usage
    • Compact

Choosing a B/W Controls 1500 Relay

These are often an existing system, in which case, it's probably best to simply replace the old one with a drop-in replacement. Additionally, the 1500 Series is a direct functional replacement for the discontinued Warrick Series 1 Relays. However, if you're creating a new system, there are many options.

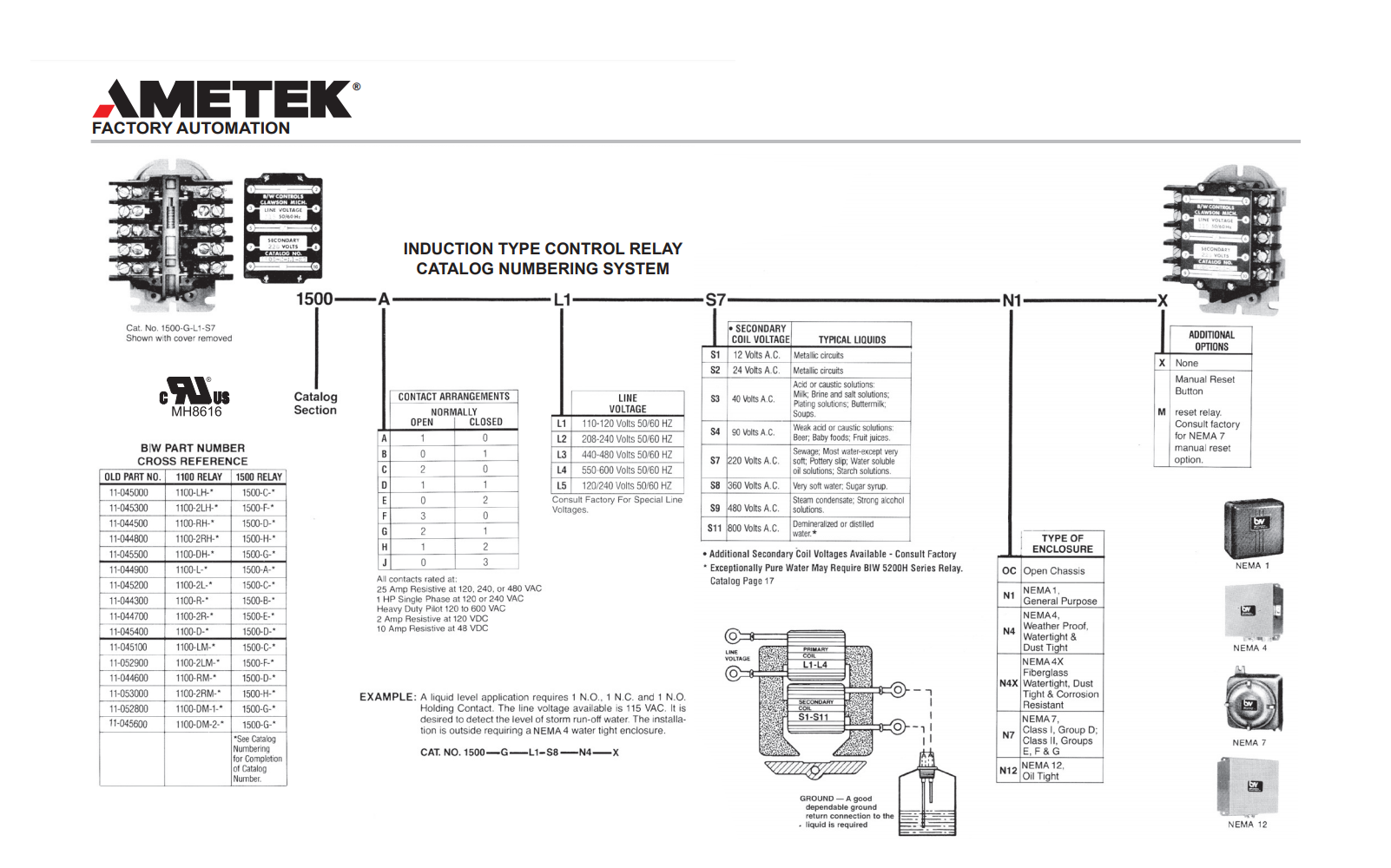

Decoding Catalog Numbers

Catalog numbers are relatively logically laid out, as follows:

Catalog

  • 1500 Series
  • Contact Configuration
  • Line Voltage
  • Secondary Voltage (Sensing Voltage)
  • Enclosure Type
  • Manual Latching

Contact Configuration

There are three positions, top, middle, and bottom. The bottom position is often reserved for the sensing circuit.

  • A - One normally open contact
    • i.e. high level signal control or low level cutoff
  • B - One normally closed contact
    • i.e. low level alarm or high level cutoff
  • C - Two normally open contacts
    • i.e. pump-down configurations
  • D - One normally open, one normally closed contact
    • i.e. pump-up configurations
  • G - Two normally open, one normally closed contact
    • Allows for pump-up or pump-down (not simultaneously)
  • F - Three normally open contacts
    • i.e. High level alarm with multiple contacts
  • H - One normally open, two normally closed contacts
    • i.e. Pump-up configurations with capability to break both legs of a 250V circuit

Line Voltage

Used to power the sensing circuit. Select to match the voltage that is available:

  • L1 - 120V
  • L2 - 240V
  • L3 - 480V

Secondary Coil Voltage

Determines the sensing voltage going through the fluid. Determined by the liquid being used in the system

  • S1 (12V) - Metallic circuits (i.e. float switch or microswitch)
  • S2 (24V) - Same as above
  • S3 (40V) - Acid or caustic solutions. milk, brine and salt solutions, plating solutions, buttermilk, soups, etc.
  • S4 (90V) - Very conductive substances; weak acid or caustic solutions, beer, baby foods, fruit juices, etc.
  • S7 (220V) - Waste/hard water, sewage, pottery slip, water soluble oil solutions, starch solutions, etc.
    • 220V is often best for waste water, or generally water with high a high mineral content.
  • S8 (360V) - Soft water, sugar syrup, etc.
    • 360V is often more versatile, as it will generally work fine for hard water, but can also accommodate most soft water. For this reason, we often recommend the S8 for those unsure of mineral content.
  • S9 (480V) - Steam condensate, strong alcohol solutions, etc.
    • 480V will also work for condensate, or water systems with very little dissolved mineral content, but we wouldn't recommend it unless it is known to be necessary for the application.
  • For lower conductivity substances, we recommend a Solid State (5200 Series) relay, as it will almost certainly give better results.

Enclosure type

We stock all relays without the enclosure, and offer the enclosures separately.

  • OC: Open Chassis; no enclosure
  • N1 - NEMA 1: Personnel protection
  • N4 - NEMA 4: Painted Steel enclosure; water-tight
  • N4x - NEMA 4x: Fiberglass Reinforced Polyester; corrosion resistant and water-tight
  • N7 - NEMA 7

Manual Reset

  • X - None
  • M - Manual Reset: Comes in an enclosure with a manual reset button, so that once the relay atuates, it will not reset until the button is pressed. These are special order.

 Electrodes

Solid Rod Electrodes

Solid rod electrodes are typically used with electrode plugs and B/W Controls E-Series Holders.

  • The most common is the bare stainless rod, with a 1/4-20 thread. This is the "A" configuration.
  • They're also available with a PVC or Teflon coating.
    • You can tell the difference between PVC and Teflon coating because the B/W controls PVC coating is black, while the Teflon coating is white.
  • "6B" style internal thread rods are also available for sue with molded nylon holders.

Wire Suspension Electrodes

Wire suspension electrodes are popular because they offer flexible mounting options, and because they tend to be less expensive than solid rod electrodes in longer lengths.

  • 6013-W6 - 304 Stainless steel electrode with a 9/16" molded plastic shield.
    • This is the most popular wire suspension electrode.
    • Compact in size, making them ideal for tight space applications like well casings.
    • Also available with a brass electrode.
    • Field-assembled
  • 6013-W2 - 304 Stainless steel electrode with 1 7/16" plastic shield.
    • If space is available, we recommend this larger electrode. It can offer better performance and longevity.
    • Available unshielded for applications where there's not enough space; however, care must be taken that the electrode does not contact any other conductive surfaces, like the side of the tank.
    • Also available as the 6013-W1 in brass.
    • Field-assembled
  • 6013-W7 - Pre-assembled 316 Stainless steel electrode
    • Good choice where corrosion resistance is critical.
    • Length of wire is included from the factory.

How to Assemble a Wire Suspension Electrode

 Electrode Holders

Holders for Solid Rod Electrodes

  • 6012-E Series
    • Pressure-tight holder that holds anywhere from 1 to 7 electrodes.
    • Mounts via a 1" to 3" NPT thread depending on the number of electrodes held.
    • Comes in cast iron, brass, or stainless steel.
    • Uses electrode plugs to hold the electrodes. The electrode screws onto the bottom of the electrode plug, maintaining the pressure-tight enclosure.
      • 6012-EP1 - The most common electrode plug. Good for high pressure and high temperature applications.
      • 6012-EP2 - Similar to the EP1, but has a glass and teflon seal that's better for stainless steel holders.
      • 6012-EP3 - This has a teflon base, and is a bit less expensive, but does not have the high pressure or high temperature ratings.
  • 6012-CE Series - Molded nylon electrode holder
    • Holds either two or three electrodes.
    • Has a straight thread rather than an NPT thread, and uses a gasket for a seal.
    • Lower-cost option for non-pressure applications

Holders for Wire Suspension Electrodes

  • 6012-CG - Cord-grip style electrode holder
    • Simplest option for wire suspension electrodes
    • Available for either one or two electrodes.
    • Mounts via a 1/2" NPT thread.
  • Conduit-Style Electrode Holders - Good for drainage sumps and open tanks
    • 6012-C4I
      • Holds up to four (4) wire suspension electrodes
      • Cast iron
      • 1/2" NPT thread for mounting to conduit
    • 6012-C4P
      • Holds up to four (4) wire suspension electrodes
      • PVC construction
      • 1/2" Conduit-style mount using PVC cement
    • 6012-C8P
      • Holds up to eight (8) wire suspension electrodes
      • PVC construction
      • 1" Conduit-style mount using PVC cement

Flange-Mount Electrode Holders

Non-Pressure Applications

6012-KF

  • Comes either blank or pre-drilled for electrodes
  • Holds one to four wire suspension electrodes
  • A similar cast iron version, the e553, is also available.

Pressurized Applications

If you need a flange-mount holder for a pressurized application, we recommend using the 6012-E Series along with a flange adapter.

Troubleshooting

Other Liquid Level Control Technologies:

  • Float
  • Submersible
  • Ultrasonic
  • RF/Capacitive
